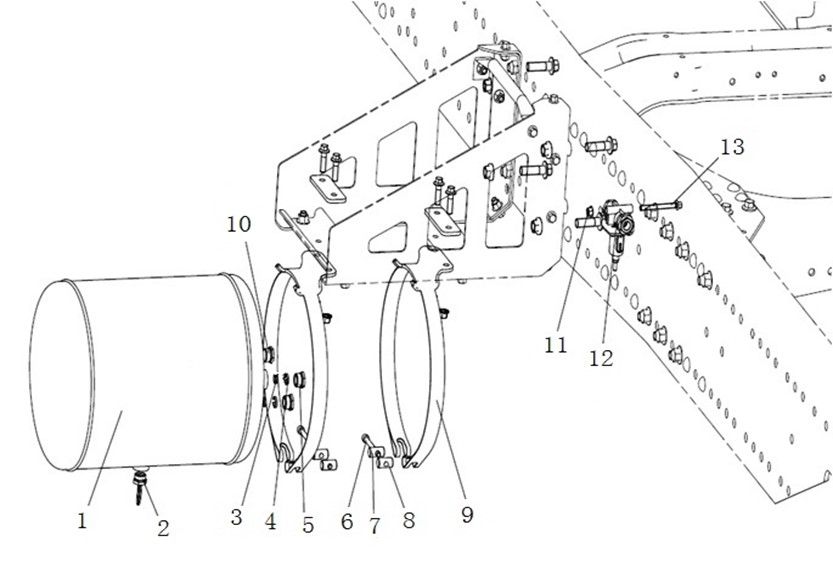

8830014 Air Reservoir 30L Al.
Unit8830014Detail
|
Unit8830014Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
3 |
1 |
WG9000360787 |
Aluminium Air Reservoir Φ310/30L |
001 |
8830014 |
||
|
5 |
2 |
WG9000361402 |
Drain valve |
001 |
8830014 |
||
|
22 |
3 |
WG9000361007 |
Gasket |
002 |
8830014 |
||
|
24 |
4 |
WG9000361008 |
Clip |
002 |
8830014 |
||
|
26 |
5 |
WG9000361009 |
Nut |
002 |
8830014 |
||
|
19 |
6 |
Q218B0880 |
Screw |
002 |
8830014 |
||
|
14 |
7 |
WG700 550013 |
Pin |
002 |
8830014 |
||
|
9 |
8 |
WG09 190017 |
Pin |
002 |
8830014 |
||
|
7 |
9 |
WG9700360005 |
Strap assembly (Φ310) |
002 |
8830014 |
||
|
20 |
10 |
WG9000361012 |
Plug |
002 |
8830014 |
||
|
41 |
11 |
ZQ32008T13F6 |
Hexagon nuts with flange |
001 |
8830014 |
||
|
31 |
12 |
WG9000360519 |
Valve |
001 |
8830014 |
||
|
40 |
13 |
ZQ1840880TF6 |
Hexagon bolts with flange |
001 |
8830014 |
||
|
29 |
14 |
WG9000361204 |
Nozzle |
006 |
8830014 |
||
|
34 |
15 |
WG9000361007 |
Gasket |
002 |
8830014 |
||
|
36 |
16 |
WG9000361008 |
Clip |
002 |
8830014 |
||
|
38 |
17 |
WG9000361009 |
Nut |
002 |
8830014 |
||
|
44 |
18 |
WG9000361104 |
Nozzle |
002 |
8830014 |
||
|
42 |
19 |
WG9000361106 |
Nozzle |
002 |
8830014 |
||
