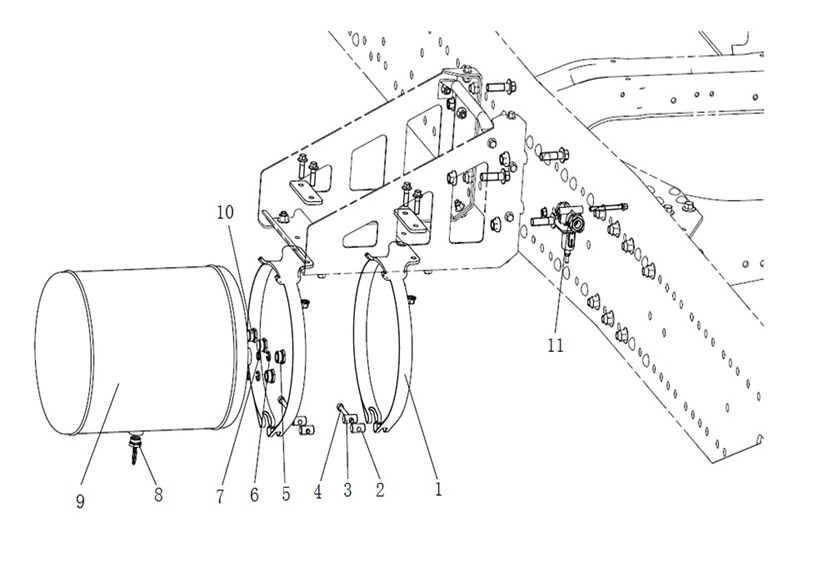

8830011 Air Reservoir 30L Al.
Unit8830011Detail
|
Unit8830011Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
7 |
1 |
WG9700360005 |
Strap assembly (Φ310) |
002 |
8830011 |
||
|
9 |
2 |
WG09 190017 |
Pin |
002 |
8830011 |
||
|
13 |
3 |
WG700 550013 |
Pin |
002 |
8830011 |
||
|
17 |
4 |
Q218B0880 |
Screw |
002 |
8830011 |
||
|
24 |
5 |
WG9000361009 |
Nut |
002 |
8830011 |
||
|
22 |
6 |
WG9000361008 |
Clip |
002 |
8830011 |
||
|
20 |
7 |
WG9000361007 |
Gasket |
002 |
8830011 |
||
|
5 |
8 |
WG9000361402 |
Drain valve |
001 |
8830011 |
||
|
3 |
9 |
WG9000360787 |
Aluminium Air Reservoir Φ310/30L |
001 |
8830011 |
||
|
18 |
10 |
WG9000361012 |
Plug |
001 |
8830011 |
||
|
26 |
11 |
WG9000360519 |
Valve |
001 |
8830011 |
||
|
29 |
12 |
WG9000361015 |
Nut |
001 |
8830011 |
||
|
31 |
13 |
WG9000361016 |
Gasket |
002 |
8830011 |
||
|
33 |
14 |
WG9000361017 |
O-ring |
002 |
8830011 |
||
|
35 |
15 |
190003559385 |
Nozzle |
001 |
8830011 |
||
