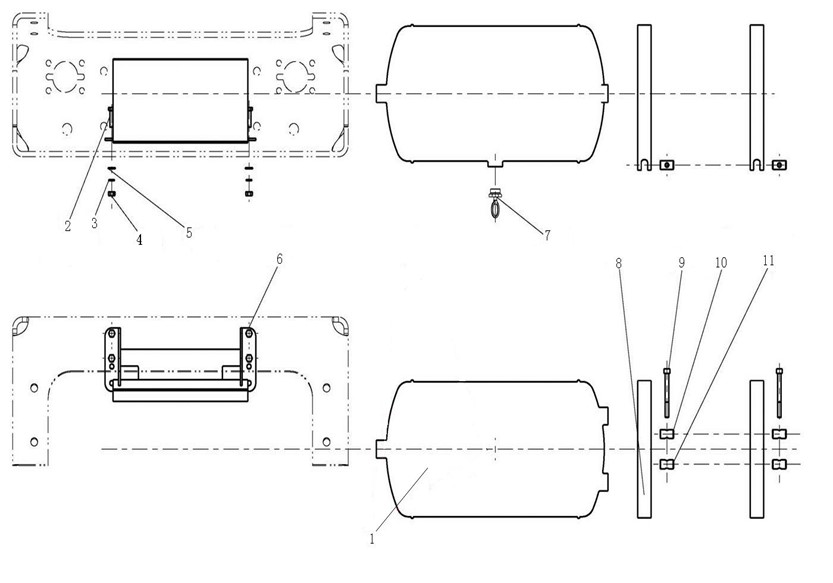

8830002 gas reservoir 20L
Unit8830002Detail
|
Unit8830002Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
WG9000360700 |
Air tank |
001 |
8830002 |
||
|
11 |
2 |
Q150B0830 |
Bolt |
004 |
8830002 |
||
|
13 |
3 |
Q40308 |
Spring washer |
004 |
8830002 |
||
|
14 |
4 |
Q340B08 |
Nut |
004 |
8830002 |
||
|
12 |
5 |
Q40108 |
Washer |
004 |
8830002 |
||
|
6 |
6 |
AZ9718360070 |
Bracket assembly |
001 |
8830002 |
||
|
7 |
6.1 |
AZ9718360067 |
Bracket |
001 |
8830002 |
||
|
8 |
6.2 |
AZ9718360068 |
Bracket |
001 |
8830002 |
||
|
9 |
6.3 |
AZ9718360069 |
Plate |
001 |
8830002 |
||
|
10 |
6.4 |
AZ9718360071 |
Plate |
001 |
8830002 |
||
|
26 |
7 |
WG9000361402 |
Drain valve |
001 |
8830002 |
||
|
15 |
8 |
WG99112270012 |
Strap assembly |
002 |
8830002 |
||
|
25 |
9 |
Q218B0880 |
Screw |
002 |
8830002 |
||
|
19 |
10 |
WG09 190017 |
Pin |
002 |
8830002 |
||
|
22 |
11 |
WG700 550013 |
Pin |
002 |
8830002 |
||
