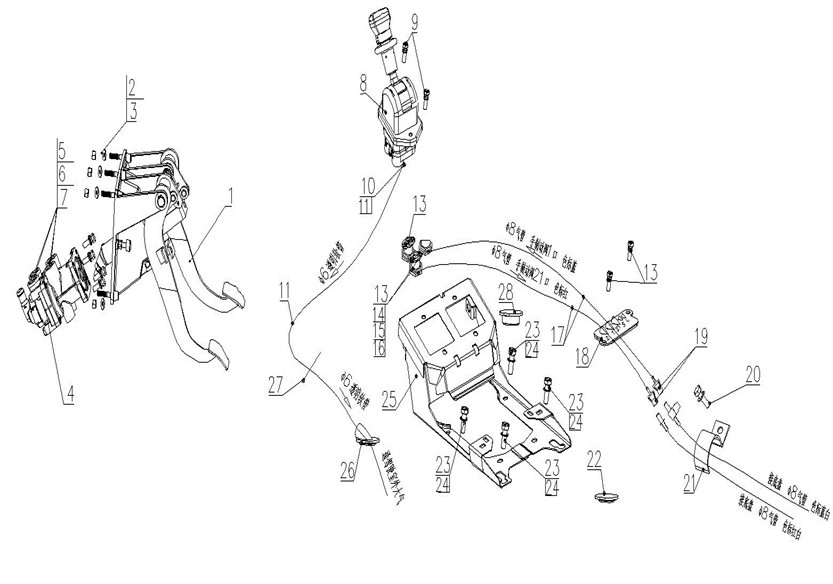

8365752 Braking pedal assembly
Unit8365752Detail
|
Unit8365752Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
3 |
1 |
WG9525361810 |
pedal |
001 |
8365752 |
||
|
16 |
2 |
Q40108 |
Washer |
005 |
8365752 |
||
|
17 |
3 |
ZQ32008 |
Hexagon nuts with flange |
005 |
8365752 |
||
|
18 |
4 |
WG9719360005 |
Service brake valve |
001 |
8365752 |
||
|
20 |
5 |
WG9000361007 |
Gasket |
004 |
8365752 |
||
|
22 |
6 |
WG9000361008 |
Clip |
004 |
8365752 |
||
|
24 |
7 |
WG9000361009 |
Nut |
004 |
8365752 |
||
|
42 |
8 |
WG9000360522 |
Hand braking valve |
001 |
8365752 |
||
|
30 |
9 |
Q2360620 |
Screw assembly |
002 |
8365752 |
||
|
67 |
10 |
AZ9525771019 |
BT30R-HS Bundle |
001 |
8365752 |
||
|
65 |
11 |
WG9525360271 |
HOSE φ6X1 |
445 |
8365752 |
||
|
45 |
12 |
WG9000361011 |
Plug |
001 |
8365752 |
||
|
47 |
13 |
WG9000361004 |
Gasket |
002 |
8365752 |
||
|
49 |
14 |
WG9000361005 |
Clip |
002 |
8365752 |
||
|
51 |
15 |
WG9000361006 |
Nut |
002 |
8365752 |
||
|
53 |
16 |
WG9000361201 |
Nozzle |
002 |
8365752 |
||
|
55 |
17 |
190003179781 |
Plastic tube |
267 |
8365752 |
||
|
28 |
18 |
WG9000361420 |
Module |
001 |
8365752 |
||
|
26 |
19 |
WG9000361403 |
Nozzle |
002 |
8365752 |
||
|
73 |
20 |
ZQ1851230 |
Hexagon bolts with flange |
002 |
8365752 |
||
|
68 |
21 |
WG9525360725 |
bracket |
001 |
8365752 |
||
|
59 |
22 |
810W96002-0451 |
Plug |
001 |
8365752 |
||
|
38 |
23 |
Q2140820 |
Screw |
004 |
8365752 |
||
|
39 |
24 |
Q40208 |
Washer |
004 |
8365752 |
||
|
31 |
25 |
WG9525360265 |
Bracket assembly |
001 |
8365752 |
||
|
57 |
26 |
WG9525360255 |
Ring |
001 |
8365752 |
||
|
74 |
27 |
WG9525360179 |
Cable binder |
003 |
8365752 |
||
|
40 |
28 |
WG9525360258 |
covering |
001 |
8365752 |
||
