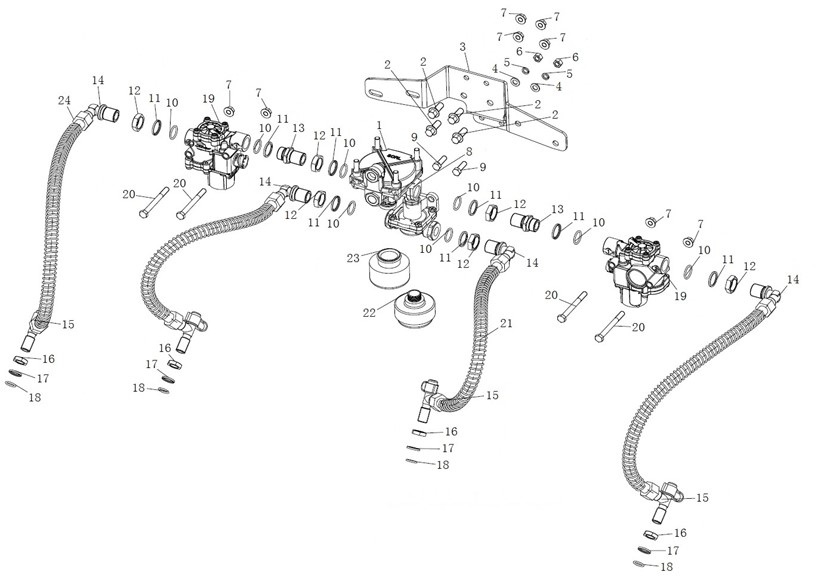

8365724 rear axle brake system device
Unit8365724Detail
|
Unit8365724Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
LG9700360054 |
Relay valve |
001 |
8365724 |
||
|
21 |
2 |
Q1840825 |
Bolt |
004 |
8365724 |
||
|
5 |
3 |
LG9700361159 |
brake |
001 |
8365724 |
||
|
17 |
4 |
Q40108 |
Washer |
002 |
8365724 |
||
|
18 |
5 |
Q40308 |
Spring washer |
002 |
8365724 |
||
|
19 |
6 |
Q340B08 |
Nut |
002 |
8365724 |
||
|
22 |
7 |
Q32008 |
Nut |
008 |
8365724 |
||
|
3 |
8 |
LG9700360059 |
brake |
001 |
8365724 |
||
|
16 |
9 |
Q150B0825 |
Bolt |
002 |
8365724 |
||
|
66 |
10 |
LG9700360506 |
O-ring |
008 |
8365724 |
||
|
61 |
11 |
LG9700360505 |
Support washer M22 |
008 |
8365724 |
||
|
56 |
12 |
LG9700360514 |
Hexagonal thin nut M2x1.5 |
006 |
8365724 |
||
|
29 |
13 |
LG9700360550 |
Joint 2XM22 |
002 |
8365724 |
||
|
34 |
14 |
LG9700360544 |
Joint M22/M18 |
004 |
8365724 |
||
|
39 |
15 |
LG9700361531 |
brake |
004 |
8365724 |
||
|
41 |
16 |
LG9700360512 |
Hexagonal thin nut M16x1.5 |
004 |
8365724 |
||
|
46 |
17 |
LG9700360503 |
Support washer M16 |
004 |
8365724 |
||
|
51 |
18 |
LG9700360504 |
O-ring |
004 |
8365724 |
||
|
10 |
19 |
LG9700360034 |
brake |
002 |
8365724 |
||
|
20 |
20 |
Q1840880 |
Bolt |
004 |
8365724 |
||
|
26 |
21 |
LG9700360112 |
Air brake hose assembly L=500 |
002 |
8365724 |
||
|
14 |
22 |
LG9700360090 |
muffler |
001 |
8365724 |
||
|
12 |
23 |
LG9700360089 |
muffler |
001 |
8365724 |
||
|
23 |
24 |
LG9700360111 |
Air brake hose assembly L=450 |
002 |
8365724 |
||
