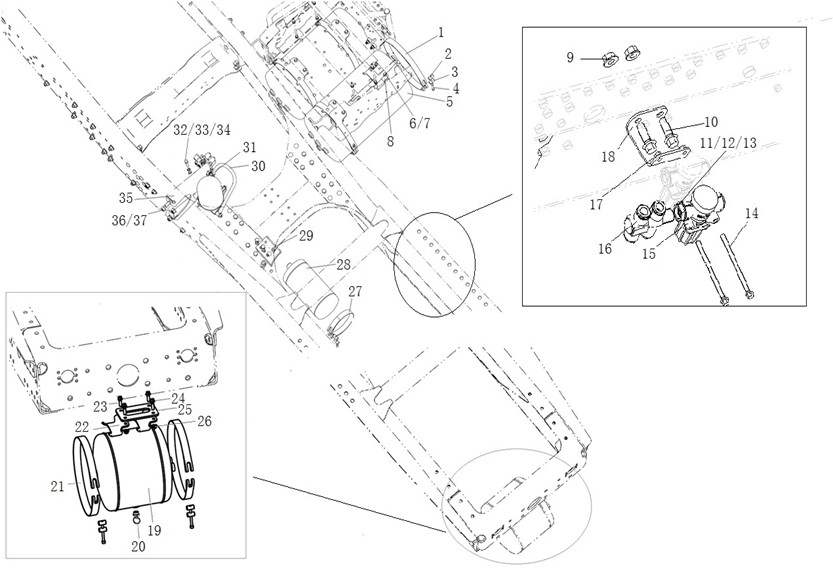

8365506 Brake System for chassis (6X2 tractor & big tank)
Unit8365506Detail
|
Unit8365506Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
30 |
1 |
WG9700360005 |
Strap assembly (Φ310) |
004 |
8365506 |
||
|
38 |
2 |
WG700 550013 |
Pin |
004 |
8365506 |
||
|
33 |
3 |
WG09 190017 |
Pin |
004 |
8365506 |
||
|
43 |
4 |
Q218B0880 |
Screw |
004 |
8365506 |
||
|
13 |
5 |
WG9000360791 |
Aluminium Air Reservoir Φ310/40L |
002 |
8365506 |
||
|
28 |
6 |
ZQ1841025 |
Hexagon bolts with flange |
008 |
8365506 |
||
|
29 |
7 |
ZQ32010 |
Hexagon nuts with flange |
008 |
8365506 |
||
|
18 |
8 |
810W51715-0046 |
BRACKET |
004 |
8365506 |
||
|
126 |
9 |
ZQ32314 |
Hexagon nuts with flange |
002 |
8365506 |
||
|
125 |
10 |
ZQ1851440 |
Hexagon bolts with flange |
002 |
8365506 |
||
|
142 |
11 |
WG9000361015 |
Nut |
001 |
8365506 |
||
|
144 |
12 |
WG9000361016 |
Gasket |
001 |
8365506 |
||
|
146 |
13 |
WG9000361017 |
O-ring |
001 |
8365506 |
||
|
127 |
14 |
ZQ18408130 |
Hexagon bolts with flange |
002 |
8365506 |
||
|
118 |
15 |
WG9000360549 |
pressure limiting valve |
001 |
8365506 |
||
|
176 |
16 |
WG9000361410 |
manifolds with Non return valve |
001 |
8365506 |
||
|
128 |
17 |
ZQ32008 |
Hexagon nuts with flange |
002 |
8365506 |
||
|
120 |
18 |
712W51715-0248 |
Bracket |
001 |
8365506 |
||
|
44 |
19 |
WG9000360783 |
Aluminium Air Reservoir Φ310/20L |
001 |
8365506 |
||
|
148 |
20 |
WG9000361402 |
Drain valve |
004 |
8365506 |
||
|
62 |
21 |
WG9700360005 |
Strap assembly (Φ310) |
002 |
8365506 |
||
|
54 |
22 |
810W51715-0046 |
BRACKET |
002 |
8365506 |
||
|
59 |
23 |
ZQ1841030 |
Hexagon bolts with flange |
002 |
8365506 |
||
|
60 |
24 |
ZQ1841035 |
Hexagon bolts with flange |
002 |
8365506 |
||
|
48 |
25 |
712W51715-0047 |
Bracket |
001 |
8365506 |
||
|
61 |
26 |
ZQ32010 |
Hexagon nuts with flange |
004 |
8365506 |
||
|
97 |
27 |
WG9700360006 |
Strap assembly (Φ155) |
001 |
8365506 |
||
|
76 |
28 |
WG9000360789 |
Aluminium Air Reservoir Φ155/5L |
001 |
8365506 |
||
|
83 |
29 |
711W51715-5053 |
BRACKET F 4L LUFTKESSEL |
001 |
8365506 |
||
|
11 |
30 |
WG9925360925 |
Hose |
001 |
8365506 |
||
|
10 |
31 |
ZQ1840816 |
Hexagon bolts with flange |
002 |
8365506 |
||
|
7 |
32 |
Q151C1230 |
Bolt |
003 |
8365506 |
||
|
8 |
33 |
Q40112 |
Washer |
003 |
8365506 |
||
|
9 |
34 |
Q40312 |
Spring washer |
003 |
8365506 |
||
|
1 |
35 |
WG9918360817 |
Bracket |
001 |
8365506 |
||
|
5 |
36 |
ZQ1851440 |
Hexagon bolts with flange |
002 |
8365506 |
||
|
6 |
37 |
ZQ32314 |
Hexagon nuts with flange |
002 |
8365506 |
||
