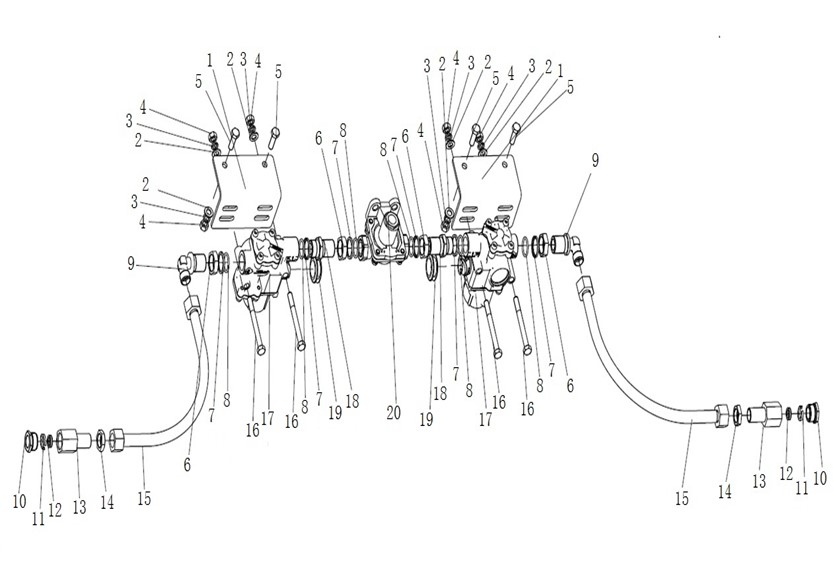

8365312 Front axis brake system
Unit8365312Detail
|
Unit8365312Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
3 |
1 |
LG9700361187 |
front ABS valve bracket |
002 |
8365312 |
||
|
11 |
2 |
Q40108 |
Washer |
008 |
8365312 |
||
|
12 |
3 |
Q40308 |
Spring washer |
008 |
8365312 |
||
|
13 |
4 |
Q340B08 |
Nut |
008 |
8365312 |
||
|
9 |
5 |
Q150B0825 |
Bolt |
004 |
8365312 |
||
|
31 |
6 |
LG9700360514 |
Hexagonal thin nut M2x1.5 |
004 |
8365312 |
||
|
42 |
7 |
LG9700360505 |
Support washer M22 |
006 |
8365312 |
||
|
47 |
8 |
LG9700360506 |
O-ring |
006 |
8365312 |
||
|
60 |
9 |
LG9700361532 |
brake |
002 |
8365312 |
||
|
40 |
10 |
LG9700362509 |
gasket |
002 |
8365312 |
||
|
38 |
11 |
LG9700362508 |
gasket |
002 |
8365312 |
||
|
36 |
12 |
LG9700362507 |
gasket |
002 |
8365312 |
||
|
24 |
13 |
LG9700362580 |
brake |
002 |
8365312 |
||
|
26 |
14 |
LG9700360513 |
Hexagonal thin nut M18x1.5 |
002 |
8365312 |
||
|
52 |
15 |
LG9700360111 |
Air brake hose assembly L=450 |
002 |
8365312 |
||
|
10 |
16 |
Q150B0880 |
Bolt |
004 |
8365312 |
||
|
7 |
17 |
LG9700360022 |
brake |
002 |
8365312 |
||
|
14 |
18 |
LG9700360550 |
Joint 2XM22 |
002 |
8365312 |
||
|
55 |
19 |
LG9700360228 |
brake |
002 |
8365312 |
||
|
1 |
20 |
LG9700360059 |
brake |
001 |
8365312 |
||
