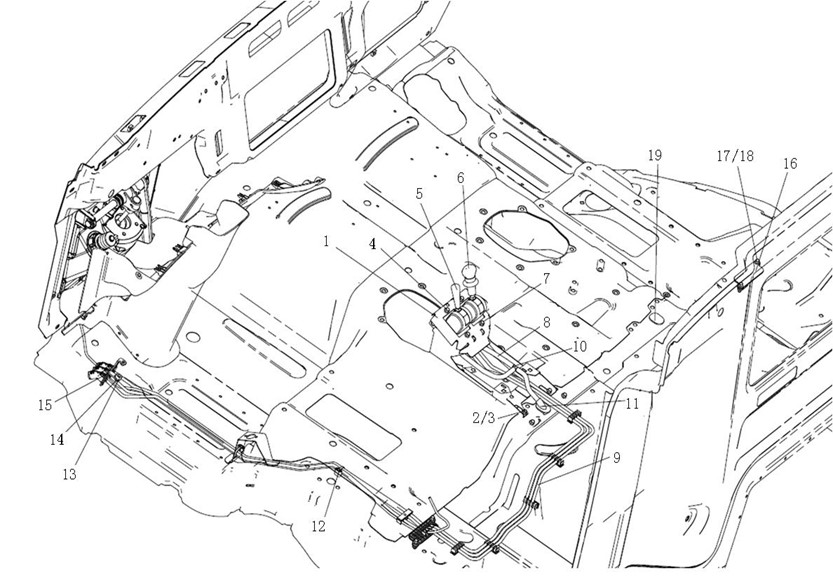

8330011 Braking System For F-Cab
Unit8330011Detail
|
Unit8330011Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
78 |
1 |
711W61340-5070 |
Bracket assembly |
001 |
8330011 |
||
|
73 |
2 |
ZQ1840820 |
Hexagon bolts with flange |
004 |
8330011 |
||
|
74 |
3 |
ZQ32008 |
Hexagon nuts with flange |
004 |
8330011 |
||
|
4 |
4 |
ZQ1840820 |
Hexagon bolts with flange |
002 |
8330011 |
||
|
5 |
5 |
711W52315-6183 |
HAND BRAKE VALVE |
001 |
8330011 |
||
|
2 |
6 |
811W52315-6156 |
Hand braking valve |
001 |
8330011 |
||
|
7 |
7 |
ZQ1840820 |
Hexagon bolts with flange |
002 |
8330011 |
||
|
24 |
8 |
MQ4-37135-9060 |
HOSE |
660 |
8330011 |
||
|
27 |
9 |
711-51290-5134 |
TUBE BUNDLE |
001 |
8330011 |
||
|
100 |
10 |
810W98131-0122 |
T-UNION F WASSERSCHLAUCH |
001 |
8330011 |
||
|
16 |
11 |
810-96001-0514 |
Ring |
001 |
8330011 |
||
|
37 |
12 |
810W51715-2001 |
BRACKET |
001 |
8330011 |
||
|
109 |
13 |
712W51715-0019 |
cushion |
001 |
8330011 |
||
|
108 |
14 |
ZQ32006 |
Hexagon nuts with flange |
002 |
8330011 |
||
|
104 |
15 |
712W51715-0018 |
Bracket |
001 |
8330011 |
||
|
71 |
16 |
811-98181-0228 |
Plate |
001 |
8330011 |
||
|
93 |
17 |
ZQ1840820 |
Hexagon bolts with flange |
004 |
8330011 |
||
|
94 |
18 |
ZQ32008 |
Hexagon nuts with flange |
004 |
8330011 |
||
|
21 |
19 |
810-96002-0451 |
Plug |
001 |
8330011 |
||
