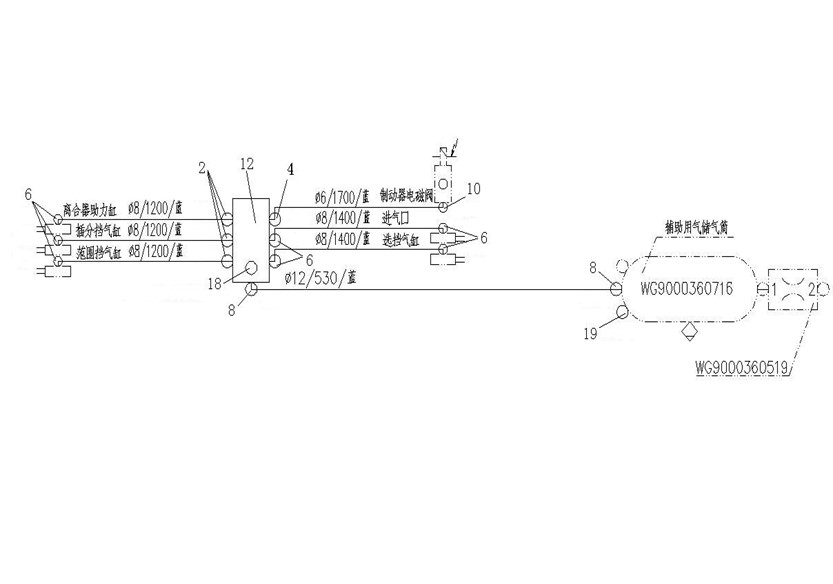

8280028 AMT transmission air control device (including clutch assist)
Unit8280028Detail
|
Unit8280028Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
AZ9925280120 |
001 |
8280028 |
|||
|
2 |
2 |
WG9000361106 |
Nozzle |
003 |
8280028 |
||
|
3 |
3 |
WG9000361106/1 |
Nozzle |
001 |
8280028 |
||
|
4 |
4 |
WG9000361209 |
Nozzle |
001 |
8280028 |
||
|
5 |
5 |
WG9000361209/1 |
Nozzle |
001 |
8280028 |
||
|
6 |
6 |
WG9000361201 |
Nozzle |
007 |
8280028 |
||
|
7 |
7 |
WG9000361201/1 |
Nozzle |
001 |
8280028 |
||
|
8 |
8 |
WG9000361204 |
Nozzle |
002 |
8280028 |
||
|
9 |
9 |
WG9000361204/1 |
Nozzle |
001 |
8280028 |
||
|
10 |
10 |
WG9000361207 |
Nozzle |
001 |
8280028 |
||
|
11 |
11 |
WG9000361207/1 |
Nozzle |
001 |
8280028 |
||
|
12 |
12 |
WG9000361404 |
Module |
001 |
8280028 |
||
|
13 |
13 |
WG9000361404/1 |
Module |
001 |
8280028 |
||
|
14 |
14 |
Q150B0850 |
Bolt |
002 |
8280028 |
||
|
15 |
15 |
Q40108 |
Washer |
002 |
8280028 |
||
|
16 |
16 |
Q40308 |
Spring washer |
002 |
8280028 |
||
|
17 |
17 |
Q340B08 |
Nut |
002 |
8280028 |
||
|
18 |
18 |
AZ9725360050 |
Plug |
001 |
8280028 |
||
|
19 |
19 |
WG9000361012 |
Plug |
001 |
8280028 |
||
|
20 |
20 |
WG9000361012/1 |
Plug |
001 |
8280028 |
||
|
21 |
21 |
WG9000361001 |
Gasket |
001 |
8280028 |
||
|
22 |
22 |
WG9000361001/1 |
Gasket |
001 |
8280028 |
||
|
23 |
23 |
WG9000361002 |
Clip |
001 |
8280028 |
||
|
24 |
24 |
WG9000361002/1 |
Clip |
001 |
8280028 |
||
|
25 |
25 |
WG9000361003 |
Nut |
001 |
8280028 |
||
|
26 |
26 |
WG9000361003/1 |
Nut |
001 |
8280028 |
||
|
27 |
27 |
WG9000361004 |
Gasket |
011 |
8280028 |
||
|
28 |
28 |
WG9000361004/1 |
Gasket |
001 |
8280028 |
||
|
29 |
29 |
WG9000361005 |
Clip |
011 |
8280028 |
||
|
30 |
30 |
WG9000361005/1 |
Clip |
001 |
8280028 |
||
|
31 |
31 |
WG9000361006 |
Nut |
011 |
8280028 |
||
|
32 |
32 |
WG9000361006/1 |
Nut |
001 |
8280028 |
||
|
33 |
33 |
WG9000361007 |
Gasket |
001 |
8280028 |
||
|
34 |
34 |
WG9000361007/1 |
Gasket |
001 |
8280028 |
||
|
35 |
35 |
WG9000361008 |
Clip |
001 |
8280028 |
||
|
36 |
36 |
WG9000361008/1 |
Clip |
001 |
8280028 |
||
|
37 |
37 |
WG9000361009 |
Nut |
001 |
8280028 |
||
|
38 |
38 |
WG9000361009/1 |
Nut |
001 |
8280028 |
||
|
39 |
39 |
190003179785 |
Plastic tube |
002 |
8280028 |
||
|
40 |
40 |
190003179781 |
Plastic tube |
010 |
8280028 |
||
|
41 |
41 |
190003179782 |
Plastic tube |
003 |
8280028 |
||
