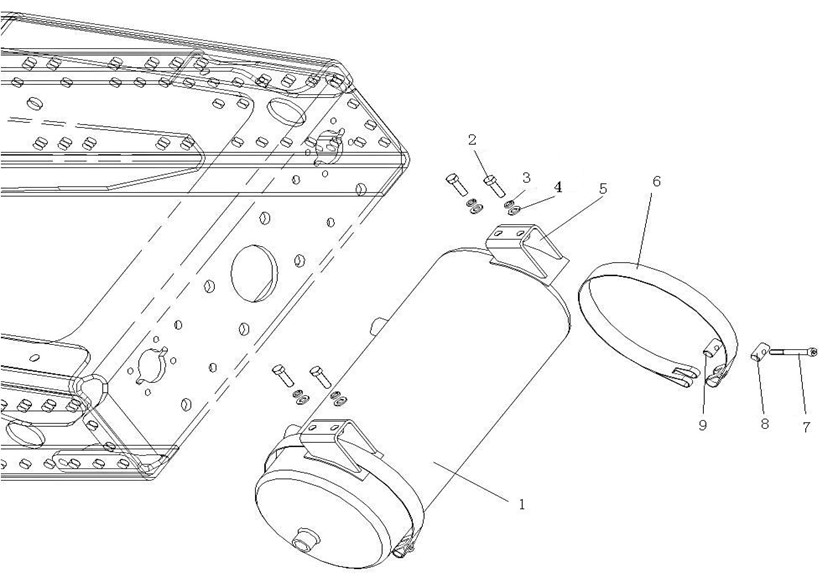

8270258 Tractor clutch booster and auxiliary gas device (270 frames/D12)
Unit8270258Detail
|
Unit8270258Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
WG9000360723 |
Air cylinder assembly Φ 225/20 l |
001 |
8270258 |
||
|
6 |
2 |
Q150B1032 |
Bolt |
004 |
8270258 |
||
|
8 |
3 |
Q40310 |
Spring washer |
004 |
8270258 |
||
|
7 |
4 |
Q40110 |
Washer |
004 |
8270258 |
||
|
3 |
5 |
WG9725360950 |
Bracket assembly |
002 |
8270258 |
||
|
9 |
6 |
WG9719360037 |
Strap assembly |
002 |
8270258 |
||
|
15 |
7 |
Q218B0880 |
Screw |
002 |
8270258 |
||
|
11 |
8 |
WG09 190017 |
Pin |
002 |
8270258 |
||
|
13 |
9 |
WG700 550013 |
Pin |
002 |
8270258 |
||
|
16 |
10 |
WG9000360519 |
Valve |
001 |
8270258 |
||
|
18 |
11 |
Q150B0875 |
Bolt |
001 |
8270258 |
||
|
19 |
12 |
Q40108 |
Washer |
001 |
8270258 |
||
|
20 |
13 |
Q40308 |
Spring washer |
001 |
8270258 |
||
|
21 |
14 |
Q340B08 |
Nut |
001 |
8270258 |
||
|
22 |
15 |
WG9000361004 |
Gasket |
001 |
8270258 |
||
|
24 |
16 |
WG9000361005 |
Clip |
001 |
8270258 |
||
|
26 |
17 |
WG9000361006 |
Nut |
001 |
8270258 |
||
|
28 |
18 |
WG9000361007 |
Gasket |
006 |
8270258 |
||
|
30 |
19 |
WG9000361008 |
Clip |
006 |
8270258 |
||
|
32 |
20 |
WG9000361009 |
Nut |
006 |
8270258 |
||
|
34 |
21 |
WG9000361402 |
Drain valve |
001 |
8270258 |
||
|
36 |
22 |
WG9000361406 |
Nozzle |
001 |
8270258 |
||
|
38 |
23 |
WG9000361201 |
Nozzle |
001 |
8270258 |
||
|
40 |
24 |
WG9000361204 |
Nozzle |
003 |
8270258 |
||
|
42 |
25 |
WG9000361323 |
Nozzle |
001 |
8270258 |
||
|
44 |
26 |
WG9000360101 |
Spring brake chamber |
002 |
8270258 |
||
|
46 |
27 |
190003179781 |
Plastic tube |
003 |
8270258 |
||
|
47 |
28 |
190003179785 |
Plastic tube |
015 |
8270258 |
||
