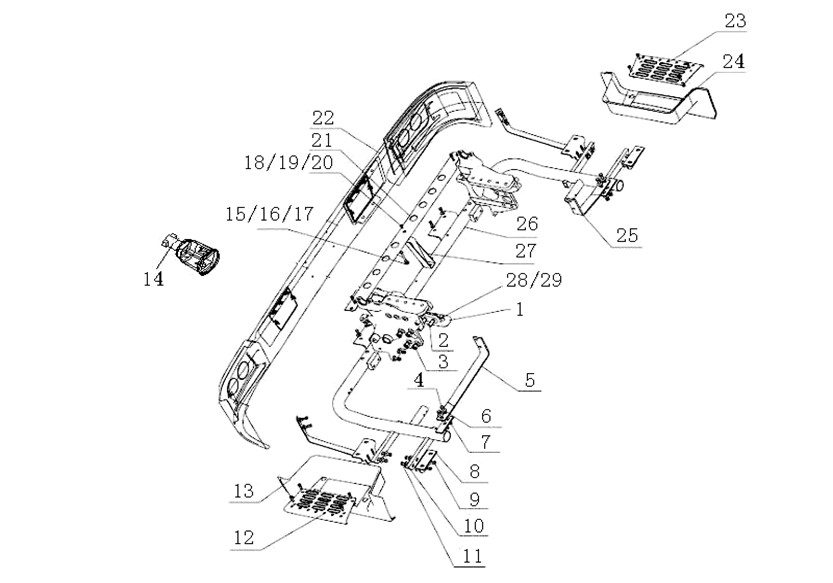

1930324 HOWO tipper metal bumper and front traction device (improved front suspension, new front face)
Unit1930324Detail
Unit1930324Detail |
|||||||
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
2 |
1 |
AZ9725930155 |
Left front traction hook seat (HW7, metal bumper) |
001 |
1930324 |
||
13 |
2 |
Q151B1660 |
Bolt |
004 |
1930324 |
||
14 |
3 |
190003888459 |
Nut |
004 |
1930324 |
||
35 |
4 |
Q150B1035 |
Bolt |
004 |
1930324 |
||
143 |
5 |
AZ9725930088 |
Pedal bracket left pull plate |
001 |
1930324 |
||
36 |
6 |
Q40210 |
Washer |
008 |
1930324 |
||
37 |
7 |
Q33210 |
Nut |
004 |
1930324 |
||
140 |
8 |
AZ9725930710 |
Plate |
001 |
1930324 |
||
32 |
9 |
Q33210 |
Nut |
008 |
1930324 |
||
31 |
10 |
Q40210 |
Washer |
016 |
1930324 |
||
30 |
11 |
Q150B1045 |
Bolt |
008 |
1930324 |
||
76 |
12 |
WG1641240115 |
Plate |
001 |
1930324 |
||
74 |
13 |
WG1641240113 |
Left lower pedal |
001 |
1930324 |
||
11 |
14 |
WG9114930093 |
Towing hook |
001 |
1930324 |
||
47 |
15 |
Q150B0880 |
Bolt |
001 |
1930324 |
||
48 |
16 |
Q40208 |
Washer |
002 |
1930324 |
||
49 |
17 |
Q33208 |
Nut |
001 |
1930324 |
||
44 |
18 |
Q2540820 |
Screw |
001 |
1930324 |
||
45 |
19 |
Q40308 |
Spring washer |
001 |
1930324 |
||
46 |
20 |
Q340B08 |
Nut |
001 |
1930324 |
||
38 |
21 |
WG9725930029 |
Bumper upper surface support plate |
001 |
1930324 |
||
156 |
22 |
AZ1641241003 |
Metal bumper assembly |
001 |
1930324 |
||
78 |
23 |
WG1641240116 |
Plate |
001 |
1930324 |
||
72 |
24 |
WG1641240114 |
Right lower pedal (symmetrical to left) |
001 |
1930324 |
||
146 |
25 |
AZ9725930089 |
Pedal bracket right pull plate |
001 |
1930324 |
||
137 |
26 |
AZ9725930711 |
Pedal support assembly |
001 |
1930324 |
||
153 |
27 |
AZ9725930034 |
Bumper middle bracket assembly |
001 |
1930324 |
||
15 |
28 |
Q151B1465 |
Bolt |
003 |
1930324 |
||
16 |
29 |
190003888458 |
Nut |
003 |
1930324 |
||
3 |
30 |
AZ9114930094 |
Towing pin assembly |
001 |
1930324 |
||
27 |
31 |
Q40210 |
Washer |
008 |
1930324 |
||
28 |
32 |
Q40310 |
Spring washer |
008 |
1930324 |
||
165 |
33 |
AZ1641240026 |
Right bumper plate |
001 |
1930324 |
||
168 |
34 |
AZ1641240027 |
Left bumper block (with a symmetrical right) |
001 |
1930324 |
||
60 |
35 |
Q1840830 |
Bolt |
002 |
1930324 |
||
61 |
36 |
Q150B0822 |
Bolt |
004 |
1930324 |
||
62 |
37 |
Q40208 |
Washer |
008 |
1930324 |
||
63 |
38 |
Q40308 |
Spring washer |
006 |
1930324 |
||
64 |
39 |
Q340B08 |
Nut |
006 |
1930324 |
||
65 |
40 |
AZ1642240050 |
Bumper left decorative board |
001 |
1930324 |
||
66 |
41 |
AZ1642240051 |
Bumper right decorating plate (with a symmetrical from left) |
001 |
1930324 |
||
67 |
42 |
WG1642930009 |
Nut |
004 |
1930324 |
||
69 |
43 |
Q2714819 |
Screw |
004 |
1930324 |
||
70 |
44 |
Q40206 |
Washer |
004 |
1930324 |
||
80 |
45 |
Q340B08 |
Nut |
008 |
1930324 |
||
81 |
46 |
Q2540835 |
Screw |
008 |
1930324 |
||
149 |
47 |
AZ9725550001 |
Washer |
001 |
1930324 |
||
108 |
48 |
Q150B1240 |
Bolt |
002 |
1930324 |
||
109 |
49 |
Q40212 |
Washer |
002 |
1930324 |
||
110 |
50 |
Q33212 |
Nut |
002 |
1930324 |
||
118 |
51 |
Q150B1075 |
Bolt |
004 |
1930324 |
||
119 |
52 |
Q150B1025 |
Bolt |
004 |
1930324 |
||
136 |
53 |
WG9725930711 |
Pedal support assembly |
001 |
1930324 |
||
139 |
54 |
WG9725930710 |
support bat |
004 |
1930324 |
||
142 |
55 |
WG9725930088 |
footplate bracket bat |
001 |
1930324 |
||
145 |
56 |
WG9725930089 |
footplate bracket bat |
001 |
1930324 |
||
148 |
57 |
WG9725550111 |
Washer |
002 |
1930324 |
||
152 |
58 |
WG9725930034 |
Middle Bracket Of The Bumper |
001 |
1930324 |
||
155 |
59 |
WG1641241003 |
bumper |
001 |
1930324 |
||
164 |
60 |
WG1641240026 |
cover |
001 |
1930324 |
||
167 |
61 |
WG1641240027 |
cover |
001 |
1930324 |
||
171 |
62 |
WG9725930179 |
qianyingou |
002 |
1930324 |
