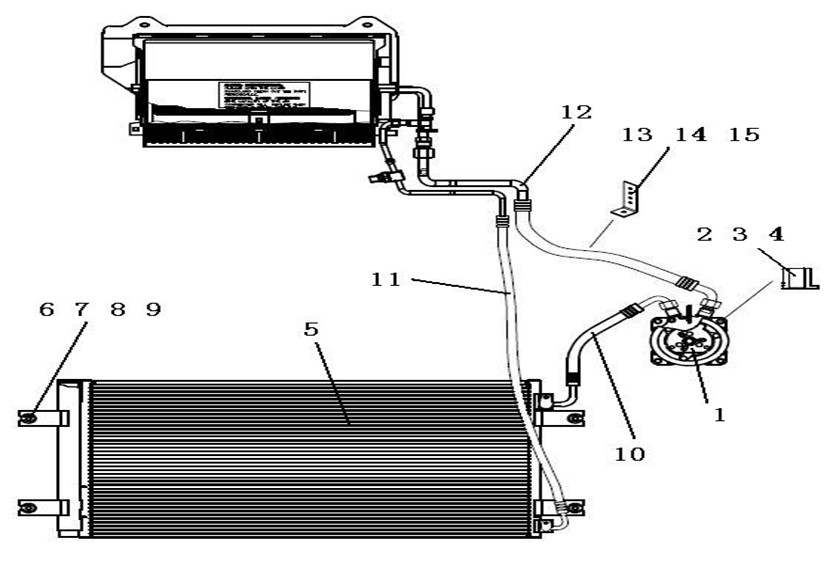

1820884 Air conditioning accessories
Unit1820884Detail
|
Unit1820884Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
WG1500139006 |
Compressor assembly |
001 |
1820884 |
||
|
3 |
2 |
WG9525130021 |
Bush |
002 |
1820884 |
||
|
6 |
3 |
Q150B1025 |
Bolt |
004 |
1820884 |
||
|
7 |
4 |
Q40310 |
Spring washer |
004 |
1820884 |
||
|
8 |
5 |
WG1671820050 |
Condenser |
001 |
1820884 |
||
|
10 |
6 |
Q150B0840 |
Bolt |
004 |
1820884 |
||
|
11 |
7 |
Q40308 |
Spring washer |
004 |
1820884 |
||
|
12 |
8 |
Q40208 |
Washer |
008 |
1820884 |
||
|
13 |
9 |
Q340B08 |
Nut |
004 |
1820884 |
||
|
14 |
10 |
WG1671820060 |
High pressure pipe |
001 |
1820884 |
||
|
16 |
11 |
WG1671820061 |
High pressure pipe |
001 |
1820884 |
||
|
18 |
12 |
WG1671820062 |
Low pressure pipe |
001 |
1820884 |
||
|
20 |
13 |
WG9525580420 |
Angle brackets |
001 |
1820884 |
||
|
23 |
14 |
190003171356 |
Cable binder |
002 |
1820884 |
||
|
24 |
15 |
Q150B0625 |
Bolt |
002 |
1820884 |
||
