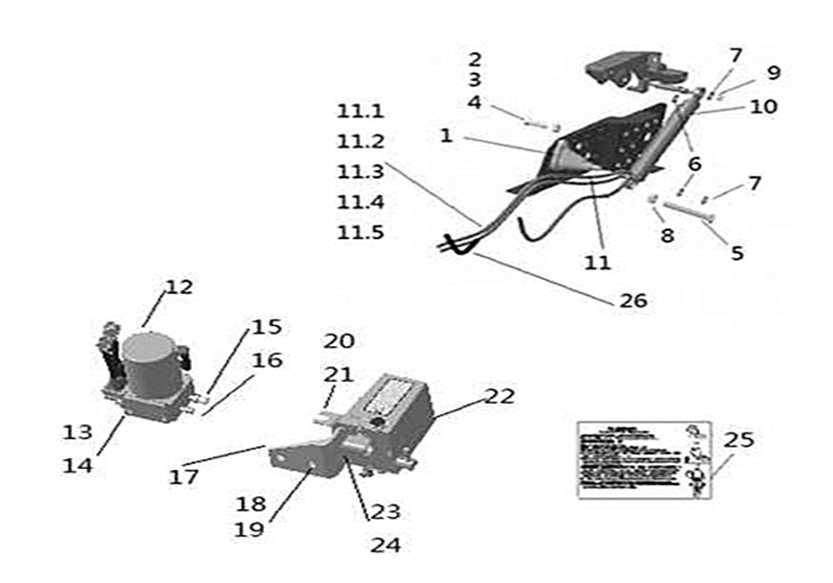

1820678 Tilting assembly
Unit1820678Detail
Unit1820678Detail |
|||||||
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
2 |
1 |
WG9525820001 |
Cylinder bracket |
001 |
1820678 |
||
5 |
2 |
ZQ151B1655TF6 |
Hexagon head bolts |
001 |
1820678 |
||
6 |
3 |
ZQ151B1670TF6 |
Hexagon head bolts |
001 |
1820678 |
||
7 |
4 |
ZQ361B16T13F6 |
Hexagon nuts ,style 2 |
002 |
1820678 |
||
8 |
5 |
Q150B14195 |
Bolt |
001 |
1820678 |
||
36 |
6 |
WG9525820009 |
Washer |
002 |
1820678 |
||
39 |
7 |
Q40214 |
Washer |
002 |
1820678 |
||
40 |
8 |
Q33214 |
Nut |
001 |
1820678 |
||
41 |
9 |
190003888458 |
Nut |
001 |
1820678 |
||
34 |
10 |
WG9525820020 |
Hydraulic cylinder |
001 |
1820678 |
||
21 |
11 |
WG9525820091 |
Pressure line assembly |
001 |
1820678 |
||
23 |
11.1 |
WG9525820092/1 |
Pressure line |
001 |
1820678 |
||
24 |
11.2 |
WG9525820037/1 |
Right pressure line(Ⅳ) |
001 |
1820678 |
||
25 |
11.3 |
WG9525820089/1 |
Pressure line |
001 |
1820678 |
||
26 |
11.4 |
WG9525820041/1 |
Nozzle |
001 |
1820678 |
||
27 |
11.5 |
WG9525820093/1 |
Pressure line |
001 |
1820678 |
||
28 |
11.6 |
WG9525820026/1 |
Right pressure line |
001 |
1820678 |
||
13 |
12 |
WG9925820031 |
Motor assembly (mounting hole in the middle) |
001 |
1820678 |
||
20 |
13 |
ZQ1840880 |
Hexagon bolts with flange |
002 |
1820678 |
||
33 |
14 |
190003171356 |
Cable binder |
012 |
1820678 |
||
29 |
15 |
WG9525820043 |
Electric pressure line |
001 |
1820678 |
||
31 |
16 |
WG9525820071 |
Electric pressure line |
001 |
1820678 |
||
45 |
17 |
WG9525820114 |
Bracket |
001 |
1820678 |
||
47 |
18 |
ZQ151B1290TF6 |
Hexagon head bolts |
002 |
1820678 |
||
48 |
19 |
ZQ361B12T13F6 |
Hexagon nuts ,style 2 |
002 |
1820678 |
||
49 |
20 |
WG9525820063 |
Bracket |
001 |
1820678 |
||
51 |
21 |
WG9525820064 |
Switch assembly |
001 |
1820678 |
||
9 |
22 |
WG9525820019 |
Lift pump |
001 |
1820678 |
||
11 |
23 |
Q150B1025 |
Bolt |
002 |
1820678 |
||
12 |
24 |
Q40310 |
Spring washer |
002 |
1820678 |
||
43 |
25 |
WG9525820200 |
Tilting explanation |
001 |
1820678 |
||
42 |
26 |
AZ9525820077 |
10” aviation hydraulic fluid |
048 |
1820678 |
