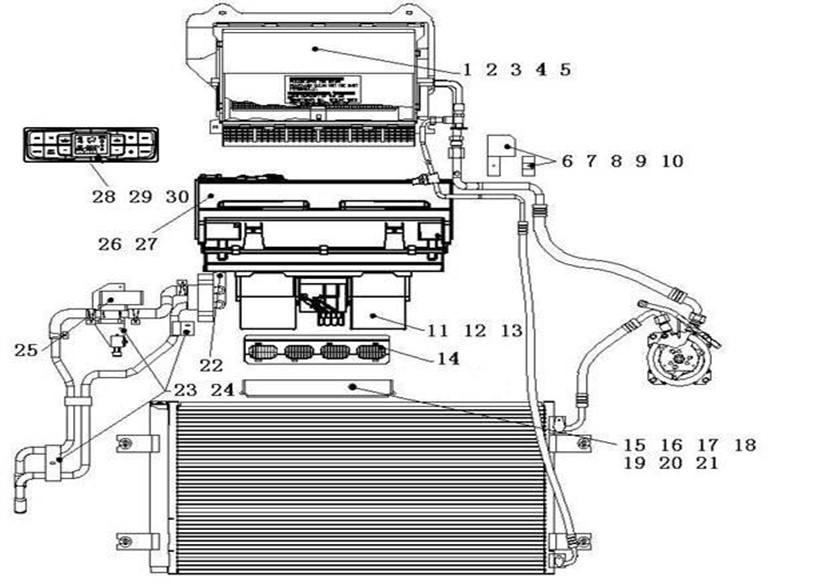

1820528 Air-condition System
Unit1820528Detail
Unit1820528Detail |
|||||||
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
3 |
1 |
WG1671820022 |
Evaporator assembly |
001 |
1820528 |
||
36 |
2 |
Q2140620 |
Screw |
004 |
1820528 |
||
37 |
3 |
Q40206 |
Washer |
004 |
1820528 |
||
38 |
4 |
Q40306 |
Spring washer |
004 |
1820528 |
||
39 |
5 |
Q3720615 |
Riveting nut |
004 |
1820528 |
||
9 |
6 |
WG1671820070 |
Pipe assembly clip |
001 |
1820528 |
||
11 |
7 |
WG1671820071 |
Clip |
001 |
1820528 |
||
31 |
8 |
Q2360616 |
bolt |
001 |
1820528 |
||
32 |
9 |
Q2204819 |
Crosshead bolt and washer assembly |
002 |
1820528 |
||
33 |
10 |
Q40204 |
Washer |
002 |
1820528 |
||
5 |
11 |
WG1671820031 |
Blower assembly |
001 |
1820528 |
||
17 |
12 |
WG1671110102 |
Blower pad |
001 |
1820528 |
||
40 |
13 |
Q2140520 |
Screw |
001 |
1820528 |
||
20 |
14 |
WG1671820004 |
Air Circulate Board |
001 |
1820528 |
||
22 |
15 |
WG1671820003 |
Air deflector R. |
001 |
1820528 |
||
24 |
16 |
WG1671820005 |
Plastic enchase nut |
002 |
1820528 |
||
26 |
17 |
Q2204819 |
Crosshead bolt and washer assembly |
002 |
1820528 |
||
27 |
18 |
Q2140620 |
Screw |
002 |
1820528 |
||
28 |
19 |
Q340B06 |
Nut |
002 |
1820528 |
||
29 |
20 |
Q40206 |
Washer |
002 |
1820528 |
||
30 |
21 |
Q40306 |
Spring washer |
002 |
1820528 |
||
19 |
22 |
190003989336 |
Hose clamp |
002 |
1820528 |
||
34 |
23 |
Q2204819 |
Crosshead bolt and washer assembly |
005 |
1820528 |
||
35 |
24 |
Q40204 |
Washer |
003 |
1820528 |
||
7 |
25 |
WG1671820040 |
Water valve |
001 |
1820528 |
||
1 |
26 |
WG1671820012 |
Heater assembly |
001 |
1820528 |
||
41 |
27 |
Q2360616 |
bolt |
004 |
1820528 |
||
13 |
28 |
WG1671820083 |
Air conditioner control |
001 |
1820528 |
||
15 |
29 |
WG1671820090 |
wiring harness |
001 |
1820528 |
||
42 |
30 |
190003171356 |
Cable binder |
004 |
1820528 |
