1820465 HVAC

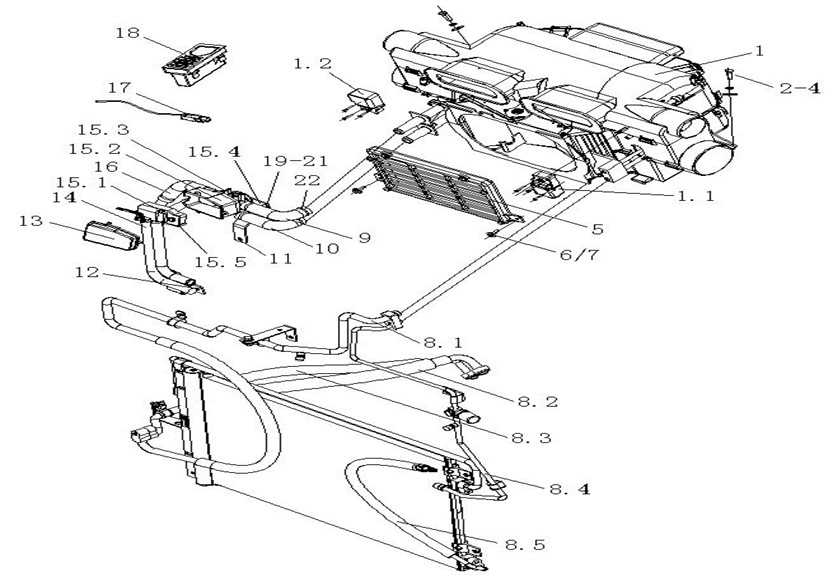

Unit1820465Detail
|
Unit1820465Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
WG1642821062 |
HVAC |
001 |
1820465 |
||
|
43 |
1.1 |
AZ1630840325 |
Redirector-2 |
001 |
1820465 |
||
|
63 |
1.2 |
AZ1630840324 |
Redirector-1 |
001 |
1820465 |
||
|
68 |
2 |
Q150B0825F31 |
Bolt |
002 |
1820465 |
||
|
69 |
3 |
Q40208F31 |
Washer |
002 |
1820465 |
||
|
70 |
4 |
Q40308F31 |
Spring washer |
002 |
1820465 |
||
|
82 |
5 |
AZ1642840084 |
Net assembly |
001 |
1820465 |
||
|
85 |
6 |
Q40206F31 |
Washer |
002 |
1820465 |
||
|
86 |
7 |
Q2140620F31 |
Screw |
002 |
1820465 |
||
|
115 |
8 |
WG1642821080 |
Purchasing list |
001 |
1820465 |
||
|
117 |
8.1 |
WG1642821082/1 |
pipe |
001 |
1820465 |
||
|
119 |
8.2 |
WG1642821084/1 |
pipe |
001 |
1820465 |
||
|
124 |
8.3 |
WG1642821086/1 |
pipe |
001 |
1820465 |
||
|
126 |
8.4 |
WG1642821088/1 |
pipe |
001 |
1820465 |
||
|
127 |
8.5 |
WG1664820266/1 |
pipe |
001 |
1820465 |
||
|
128 |
8.6 |
WG1664820128/1 |
AC LABEL |
001 |
1820465 |
||
|
98 |
9 |
WG1642820140 |
Tube |
001 |
1820465 |
||
|
103 |
10 |
WG1642840091 |
Hose |
001 |
1820465 |
||
|
110 |
11 |
Q1840816F31 |
Bolt |
001 |
1820465 |
||
|
111 |
12 |
Q1840825F31 |
Bolt |
001 |
1820465 |
||
|
102 |
13 |
AZ1664840050 |
Water valve assembly on the shield (rubber) |
001 |
1820465 |
||
|
108 |
14 |
WG1642820163 |
Tube |
001 |
1820465 |
||
|
87 |
15 |
WG1642840001 |
Water valve |
001 |
1820465 |
||
|
93 |
15.1 |
WG1630840328 |
motor |
001 |
1820465 |
||
|
90 |
15.2 |
AZ1664840024 |
Cover cap |
001 |
1820465 |
||
|
89 |
15.3 |
WG1642840015/1 |
valve |
001 |
1820465 |
||
|
91 |
15.4 |
WG1642840006/1 |
BRACKET |
001 |
1820465 |
||
|
94 |
15.5 |
WG1642840017/1 |
screw |
003 |
1820465 |
||
|
100 |
16 |
WG1642820141 |
Tube |
001 |
1820465 |
||
|
78 |
17 |
WG1630820313 |
Temperature sensor assembly |
001 |
1820465 |
||
|
75 |
18 |
WG1630840323 |
Panel assembly |
001 |
1820465 |
||
|
95 |
19 |
Q150B0616 |
Bolt |
002 |
1820465 |
||
|
96 |
20 |
Q40106 |
Washer |
002 |
1820465 |
||
|
97 |
21 |
Q40306 |
Spring washer |
002 |
1820465 |
||
|
107 |
22 |
190003989340 |
Hose clamp |
006 |
1820465 |
||
|
71 |
23 |
Q40206F31 |
Washer |
002 |
1820465 |
||
|
73 |
24 |
WG1630820019 |
Bushing |
001 |
1820465 |
||
|
77 |
25 |
AZ1630820314 |
Wiring harness |
001 |
1820465 |
||
|
72 |
26 |
Q2714825F31 |
Screw |
002 |
1820465 |
||
|
112 |
27 |
WG9003171356 |
Cable binder |
010 |
1820465 |
||
|
129 |
28 |
AZ9007310012 |
Refrigerant? |
150 |
1820465 |
||
