1820358 HVAC

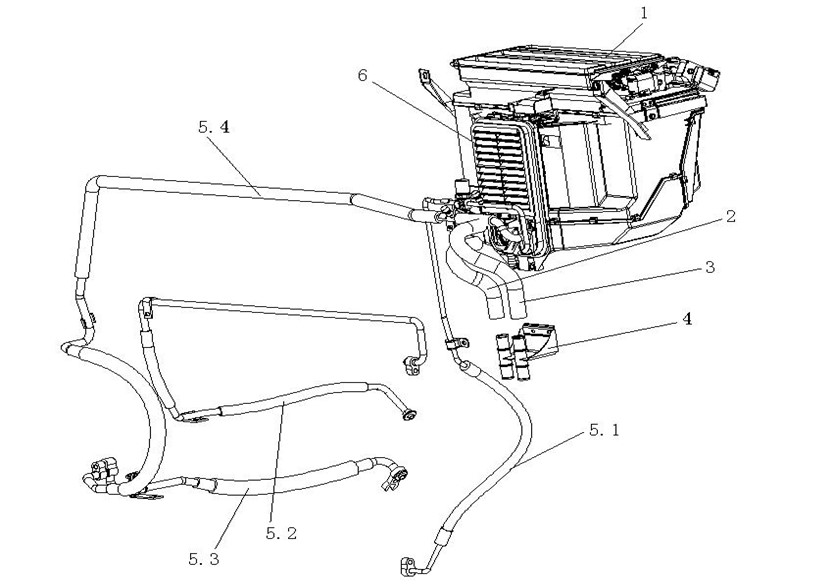

Unit1820358Detail
|
Unit1820358Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
WG1664826002 |
Air conditioner assembly (RHD) |
001 |
1820358 |
||
|
9 |
1.1 |
WG1664820014/1 |
Evaporator assembly (BEHR) |
001 |
1820358 |
||
|
178 |
1.10 |
WG1664820025 |
Sensor |
001 |
1820358 |
||
|
29 |
1.2 |
AZ1664821015 |
Warm wind radiators assembly (with BEHR radiator core) |
001 |
1820358 |
||
|
32 |
1.3 |
AZ1664820054 |
Water valve assembly |
001 |
1820358 |
||
|
76 |
1.4 |
WG1664820089/1 |
Right side ventilation door control motor |
001 |
1820358 |
||
|
161 |
1.5 |
AZ9925770109 |
wiring |
001 |
1820358 |
||
|
164 |
1.6 |
WG1664820033 |
motor |
001 |
1820358 |
||
|
167 |
1.7 |
WG1664820052 |
motor |
001 |
1820358 |
||
|
170 |
1.8 |
WG1664820045 |
motor |
001 |
1820358 |
||
|
173 |
1.9 |
WG1664820022 |
Air blower |
001 |
1820358 |
||
|
202 |
2 |
WG1664826019 |
pipe |
001 |
1820358 |
||
|
204 |
3 |
WG1664826020 |
pipe |
001 |
1820358 |
||
|
188 |
4 |
WG1664826022 |
pipe |
001 |
1820358 |
||
|
128 |
5 |
WG1664826210 |
Purchasing list |
001 |
1820358 |
||
|
146 |
5.1 |
WG1664826214/1 |
pipe |
001 |
1820358 |
||
|
140 |
5.2 |
WG1664820236/1 |
tube |
001 |
1820358 |
||
|
196 |
5.3 |
WG1664820264/1 |
pipe |
001 |
1820358 |
||
|
130 |
5.4 |
WG1664826212/1 |
pipe |
001 |
1820358 |
||
|
151 |
5.5 |
WG1664820128/1 |
AC LABEL |
001 |
1820358 |
||
|
125 |
6 |
WG1664820006 |
Net |
001 |
1820358 |
||
|
180 |
7 |
WG9719530261 |
Hose |
001 |
1820358 |
||
|
104 |
8 |
WG9003171356 |
Cable binder |
001 |
1820358 |
||
|
185 |
9 |
190003989336 |
Hose clamp |
001 |
1820358 |
||
|
186 |
10 |
Q1460825F31 |
Bolt assembly |
002 |
1820358 |
||
|
187 |
11 |
Q1460840F31 |
Bolt assembly |
002 |
1820358 |
||
|
116 |
12 |
Q340B06F31 |
Nut |
002 |
1820358 |
||
|
117 |
13 |
Q40106F31 |
Washer |
002 |
1820358 |
||
|
118 |
14 |
Q40306F31 |
Spring washer |
002 |
1820358 |
||
|
120 |
15 |
WG1630820313 |
Temperature sensor assembly |
001 |
1820358 |
||
|
123 |
16 |
WG1664820005 |
Temperature sensor assembly |
001 |
1820358 |
||
|
193 |
17 |
WG1664820010 |
air filter |
001 |
1820358 |
||
|
127 |
18 |
Q2140620F31 |
Screw |
001 |
1820358 |
||
|
152 |
19 |
AZ9007310012 |
Refrigerant? |
078 |
1820358 |
||
|
153 |
20 |
AZ1664820082 |
Batten |
002 |
1820358 |
||
|
160 |
21 |
190003989340 |
Hose clamp |
004 |
1820358 |
||
|
206 |
22 |
WG1664820003 |
control panel |
001 |
1820358 |
||
