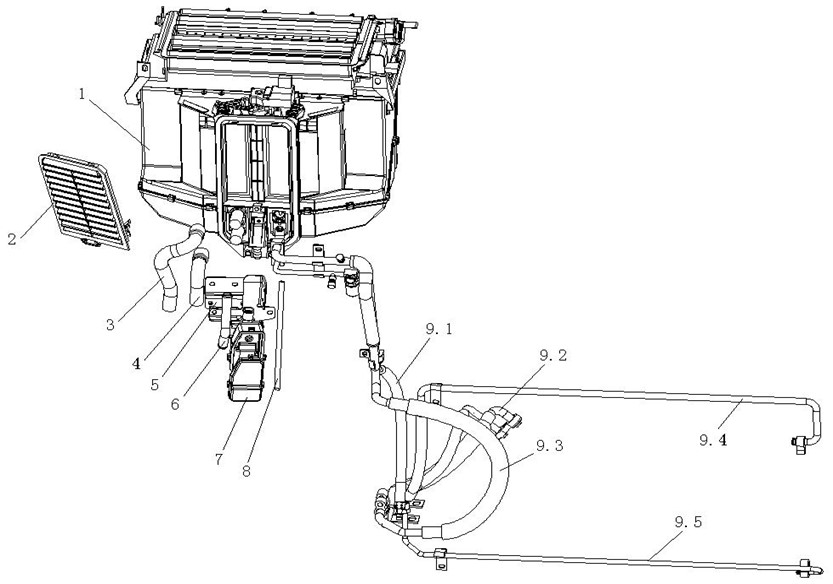

1820270 Air conditioning system assembly (MAN, medium module, flat floor, left)
Unit1820270Detail
|
Unit1820270Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
WG1664820002 |
HVAC |
001 |
1820270 |
||
|
160 |
1.1 |
AZ9925770108 |
wiring |
001 |
1820270 |
||
|
162 |
1.2 |
WG1664820033 |
motor |
001 |
1820270 |
||
|
165 |
1.3 |
AZ1664821060 |
Tube assembly |
001 |
1820270 |
||
|
166 |
1.4 |
WG1664820045 |
motor |
001 |
1820270 |
||
|
172 |
1.6 |
WG1664820022 |
Air blower |
001 |
1820270 |
||
|
174 |
1.7 |
WG1664820025 |
Sensor |
001 |
1820270 |
||
|
9 |
1.8 |
WG1664820014/1 |
Evaporator assembly (BEHR) |
001 |
1820270 |
||
|
29 |
1.9 |
AZ1664821025 |
Warm wind radiators assembly (copper tank) |
001 |
1820270 |
||
|
111 |
2 |
WG1664820006 |
Net |
001 |
1820270 |
||
|
146 |
3 |
WG1664841081 |
Molding rubber hose (hot water) |
001 |
1820270 |
||
|
148 |
4 |
WG1664840132 |
Molding rubber hose (cold water) |
001 |
1820270 |
||
|
90 |
5 |
AZ1664840032 |
Mounting bracket assembly (rubber) |
001 |
1820270 |
||
|
93 |
6 |
AZ1664840060 |
Water valve assembly (T7H flat floor transition) (rubber) |
001 |
1820270 |
||
|
184 |
6.1 |
WG1664820052 |
motor |
001 |
1820270 |
||
|
100 |
7 |
AZ1664840050 |
Water valve assembly on the shield (rubber) |
001 |
1820270 |
||
|
176 |
8 |
WG9719530261 |
Hose |
001 |
1820270 |
||
|
115 |
9 |
WG1664820203 |
Air conditioning system parts list (MAN, flat floor, left, right compressor) |
001 |
1820270 |
||
|
117 |
9.1 |
WG1664820234/1 |
tube |
001 |
1820270 |
||
|
130 |
9.2 |
WG1664820239/1 |
tube |
001 |
1820270 |
||
|
121 |
9.3 |
WG1664820205/1 |
tube |
001 |
1820270 |
||
|
131 |
9.4 |
WG1664820236/1 |
tube |
001 |
1820270 |
||
|
137 |
9.5 |
WG1664820212/1 |
tube |
001 |
1820270 |
||
|
84 |
10 |
WG9003171356 |
Cable binder |
001 |
1820270 |
||
|
181 |
11 |
190003989336 |
Hose clamp |
001 |
1820270 |
||
|
151 |
12 |
Q1460825F31 |
Bolt assembly |
002 |
1820270 |
||
|
182 |
13 |
Q1460840F31 |
Bolt assembly |
002 |
1820270 |
||
|
101 |
14 |
Q2360620F31 |
Screw assembly |
002 |
1820270 |
||
|
102 |
15 |
Q340B06F31 |
Nut |
002 |
1820270 |
||
|
103 |
16 |
Q40106F31 |
Washer |
002 |
1820270 |
||
|
104 |
17 |
Q40306F31 |
Spring washer |
002 |
1820270 |
||
|
106 |
18 |
WG1630820313 |
Temperature sensor assembly |
001 |
1820270 |
||
|
109 |
19 |
WG1664820005 |
Temperature sensor assembly |
001 |
1820270 |
||
|
189 |
20 |
WG1664820010 |
air filter |
001 |
1820270 |
||
|
113 |
21 |
Q2140620F31 |
Screw |
001 |
1820270 |
||
|
144 |
22 |
AZ9007310012 |
Refrigerant? |
078 |
1820270 |
||
|
145 |
23 |
AZ1664820082 |
Batten |
002 |
1820270 |
||
|
150 |
24 |
190003989340 |
Hose clamp |
004 |
1820270 |
||
|
158 |
25 |
WG1664820003 |
control panel |
001 |
1820270 |
||
