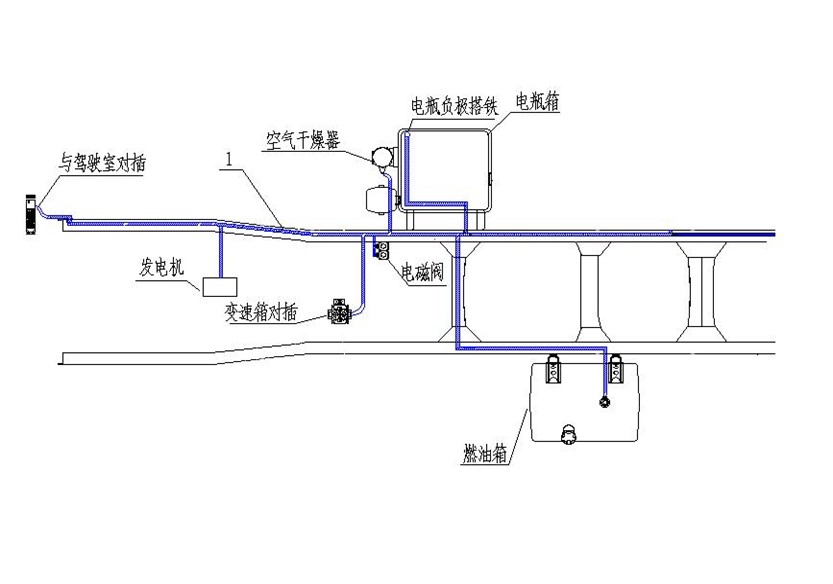

7370232 chassis harness
Unit7370232Detail
|
Unit7370232Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
20 |
1 |
712-25457-3006 |
wiring harness |
001 |
7370232 |
||
|
21 |
2 |
712-25455-6754 |
wiring harness |
001 |
7370232 |
||
|
1 |
3 |
WG9925773050 |
Wire harness clamping clamp |
020 |
7370232 |
||
|
3 |
4 |
WG9925773051 |
Cable binder |
020 |
7370232 |
||
|
5 |
5 |
WG9925773052 |
Plastic end caps |
020 |
7370232 |
||
|
7 |
6 |
WG9724770001 |
15 core trailer plug |
001 |
7370232 |
||
|
9 |
7 |
Q150B0825 |
Bolt |
002 |
7370232 |
||
|
10 |
8 |
Q340B08 |
Nut |
002 |
7370232 |
||
|
11 |
9 |
Q40308 |
Spring washer |
002 |
7370232 |
||
|
12 |
10 |
WG9724770003 |
15 core flexible cable |
001 |
7370232 |
||
|
14 |
11 |
WG9718770053 |
Socket |
001 |
7370232 |
||
|
17 |
12 |
Q150B0825 |
Bolt |
002 |
7370232 |
||
|
18 |
13 |
Q340B08 |
Nut |
002 |
7370232 |
||
|
19 |
14 |
Q40308 |
Spring washer |
002 |
7370232 |
||
