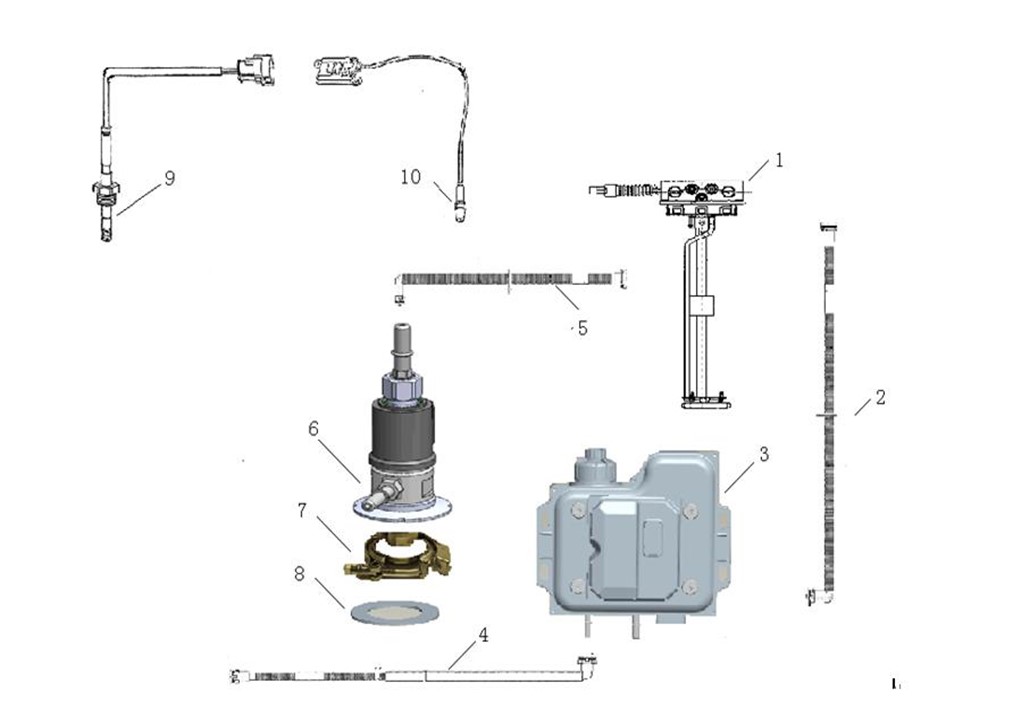

2541804 scr system (M5G)
Unit2541804Detail
Unit2541804Detail |
|||||||
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
1 |
1 |
202V27120-0001 |
Urea liquid level sensor (not heat) |
001 |
2541804 |
||
87 |
2 |
202V27120-0072 |
pipe |
001 |
2541804 |
||
4 |
3 |
AZ1034121035 |
UREA PUMP BOX CONTROL SYSTEM |
001 |
2541804 |
||
90 |
4 |
WG1034120205 |
urea pipe |
001 |
2541804 |
||
92 |
5 |
WG1034120089 |
2500mm |
001 |
2541804 |
||
79 |
6 |
WG1034121002 |
UREA INJECTOR ASSY. |
001 |
2541804 |
||
73 |
7 |
WG1034120058 |
V-shaped band |
001 |
2541804 |
||
77 |
8 |
WG1034120057 |
Urea nozzle seal gasket |
001 |
2541804 |
||
83 |
9 |
WG1034121033 |
Exhaust temperature sensor |
001 |
2541804 |
||
81 |
10 |
WG1034121032 |
NOx sensor |
001 |
2541804 |
||
3 |
11 |
AZ9112550120 |
Polyamide tube |
001 |
2541804 |
||
75 |
12 |
ZQ1841090 |
Hexagon bolts with flange |
004 |
2541804 |
||
76 |
13 |
ZQ32010 |
Hexagon nuts with flange |
004 |
2541804 |
||
85 |
14 |
ZQ1840825 |
Hexagon bolts with flange |
002 |
2541804 |
||
86 |
15 |
ZQ32008 |
Hexagon nuts with flange |
002 |
2541804 |
||
94 |
16 |
WG1034124241 |
M5G SCR harness (no electric heating) |
001 |
2541804 |
||
96 |
17 |
WG1034120077 |
SCR adblue |
001 |
2541804 |
||
69 |
18 |
WG1034120103 |
urea pump bracket |
001 |
2541804 |
||
71 |
19 |
ZQ1851435TF6 |
Hexagon bolts with flange |
004 |
2541804 |
||
72 |
20 |
ZQ32314T13F6 |
Hexagon nuts with flange |
004 |
2541804 |
