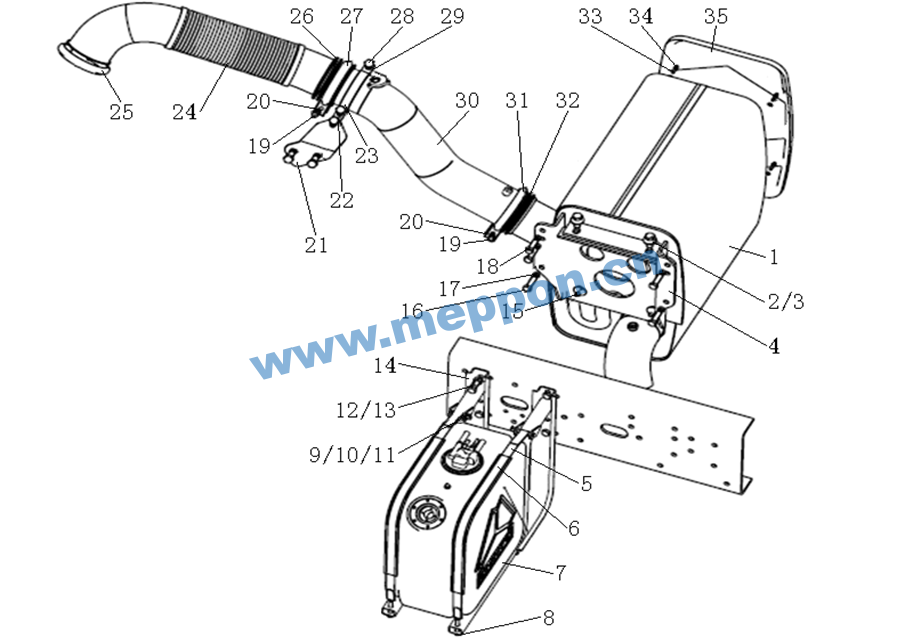

2540924 SCR_emission Ⅳ exhaust system
Unit2540924Detail
|
Unit2540924Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
19 |
1 |
WG9925540680 |
SCR(Emission 4) muffler assembly |
001 |
2540924 |
||
|
83 |
2 |
Q150B1640TF3 |
Bolt |
002 |
2540924 |
||
|
30 |
3 |
Q40216 |
Washer |
002 |
2540924 |
||
|
24 |
4 |
WG9925540382 |
Muffler support assembly |
001 |
2540924 |
||
|
41 |
5 |
WG9925541052 |
Urea box pull belt |
002 |
2540924 |
||
|
43 |
6 |
AZ9925541030 |
Strap |
002 |
2540924 |
||
|
38 |
7 |
WG9925544001 |
Urea box assembly |
001 |
2540924 |
||
|
47 |
8 |
ZQ340B10 |
Hexagon nuts ,style 1 |
004 |
2540924 |
||
|
44 |
9 |
Q5101060 |
Pin |
002 |
2540924 |
||
|
45 |
10 |
Q5003214 |
Pin |
002 |
2540924 |
||
|
46 |
11 |
Q40110 |
Washer |
002 |
2540924 |
||
|
86 |
12 |
ZQ1811435TF6 |
Hexagon flange bolts with teeth |
006 |
2540924 |
||
|
87 |
13 |
ZQ32514T13F6 |
Hexagon flange nuts with teeth |
006 |
2540924 |
||
|
48 |
14 |
WG9925541060 |
Urea box support assembly (one-piece) |
001 |
2540924 |
||
|
84 |
15 |
ZQ32516T13F6 |
Hexagon flange nuts with teeth |
002 |
2540924 |
||
|
80 |
16 |
ZQ1811450TF6 |
Hexagon flange bolts with teeth |
004 |
2540924 |
||
|
82 |
17 |
ZQ32514T13F6 |
Hexagon flange nuts with teeth |
005 |
2540924 |
||
|
81 |
18 |
ZQ1811445TF6 |
Hexagon flange bolts with teeth |
001 |
2540924 |
||
|
17 |
19 |
ZQ150B1065Q |
Hexagon head bolts |
002 |
2540924 |
||
|
66 |
20 |
ZQ340B10 |
Hexagon nuts ,style 1 |
002 |
2540924 |
||
|
67 |
21 |
WG9925542008 |
Bracket |
001 |
2540924 |
||
|
68 |
22 |
712W97420-0001 |
Clamp |
001 |
2540924 |
||
|
72 |
23 |
712W97420-0002 |
Clamp |
001 |
2540924 |
||
|
3 |
24 |
WG9925541005 |
Metal hose |
001 |
2540924 |
||
|
1 |
25 |
MQ6W67419-0004 |
V clamps QRC-9,2X142-W4 |
001 |
2540924 |
||
|
62 |
26 |
712W15901-0002 |
gasket |
001 |
2540924 |
||
|
64 |
27 |
712W97420-0006 |
Clamp |
001 |
2540924 |
||
|
76 |
28 |
ZQ1841030 |
Hexagon bolts with flange |
002 |
2540924 |
||
|
77 |
29 |
ZQ32010 |
Hexagon nuts with flange |
002 |
2540924 |
||
|
9 |
30 |
WG9925541007 |
Exhaust pipe _ with urea nozzle holder |
001 |
2540924 |
||
|
15 |
31 |
712W97420-0008 |
stainless steel clamp |
001 |
2540924 |
||
|
7 |
32 |
712W15901-0003 |
gasket |
001 |
2540924 |
||
|
35 |
33 |
ZQ150B0620 |
Hexagon head bolts |
004 |
2540924 |
||
|
85 |
34 |
Q40206 |
Washer |
004 |
2540924 |
||
|
33 |
35 |
712W15101-0003 |
decorative panel |
001 |
2540924 |
||
|
78 |
36 |
ZQ1841035TF6 |
Hexagon bolts with flange |
002 |
2540924 |
||
|
79 |
37 |
ZQ32010T13F6 |
Hexagon nuts with flange |
002 |
2540924 |
||
