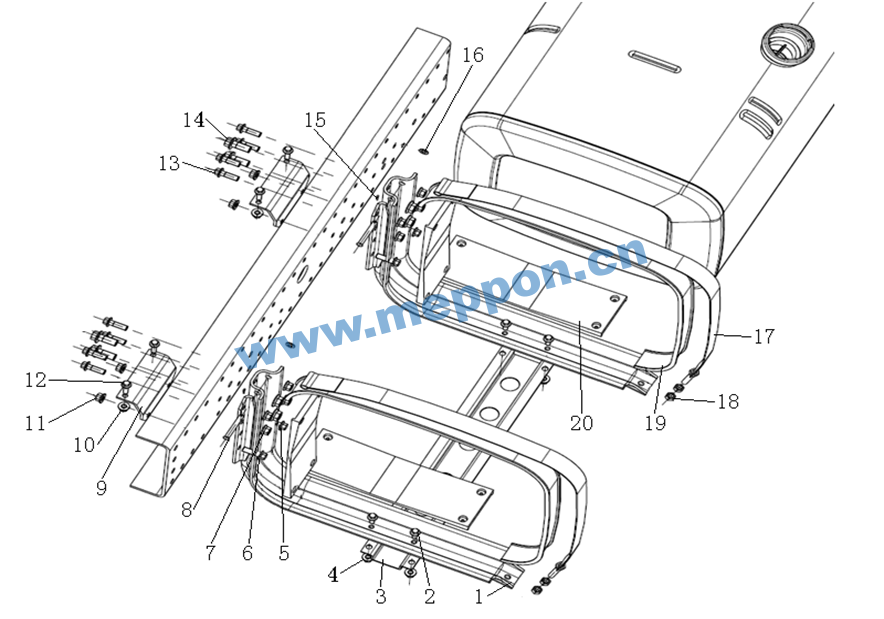

2300074 fuel tank install
Unit2300074Detail
|
Unit2300074Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
WG9725551601 |
bracket |
002 |
2300074 |
||
|
25 |
2 |
ZQ1841025 |
Hexagon bolts with flange |
004 |
2300074 |
||
|
23 |
3 |
WG9725551307 |
bracket |
001 |
2300074 |
||
|
26 |
4 |
ZQ32010 |
Hexagon nuts with flange |
004 |
2300074 |
||
|
28 |
5 |
ZQ32516T13F6 |
Hexagon flange nuts with teeth |
004 |
2300074 |
||
|
31 |
6 |
ZQ1811640TF6 |
Hexagon flange bolts with teeth |
004 |
2300074 |
||
|
30 |
7 |
ZQ32512T13F6 |
Hexagon flange nuts with teeth |
008 |
2300074 |
||
|
14 |
8 |
Q5101075 |
Pin (h)” |
002 |
2300074 |
||
|
17 |
9 |
WG9725551308 |
bracket |
002 |
2300074 |
||
|
20 |
10 |
ZQ32010T13F6 |
Hexagon nuts with flange |
004 |
2300074 |
||
|
32 |
11 |
ZQ32516T13F6 |
Hexagon flange nuts with teeth |
004 |
2300074 |
||
|
19 |
12 |
ZQ1841040TF6 |
Hexagon bolts with flange |
004 |
2300074 |
||
|
29 |
13 |
ZQ1811240TF6 |
Hexagon flange bolts with teeth |
008 |
2300074 |
||
|
27 |
14 |
ZQ1811640TF6 |
Hexagon flange bolts with teeth |
004 |
2300074 |
||
|
16 |
15 |
Q5003214 |
Pin |
002 |
2300074 |
||
|
15 |
16 |
Q40110 |
Washer |
002 |
2300074 |
||
|
9 |
17 |
WG9725550203 |
Strap |
002 |
2300074 |
||
|
13 |
18 |
Q340B12 |
Nut |
004 |
2300074 |
||
|
11 |
19 |
WG9725550201 |
Strap |
002 |
2300074 |
||
|
3 |
20 |
WG9725550202 |
Cushion |
004 |
2300074 |
||
