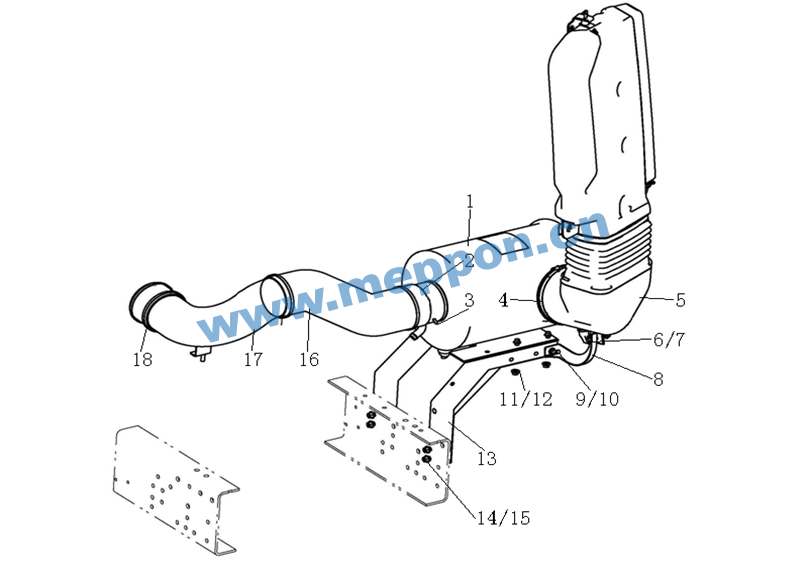

2191002 INTAKE SYSTEM
Unit2191002Detail
|
Unit2191002Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
28 |
1 |
WG9326190050 |
air cleaner |
001 |
2191002 |
||
|
52 |
1.1 |
WG9326190050+001/1 |
main filter element |
001 |
2191002 |
||
|
53 |
1.2 |
WG9326190050+002/1 |
security filter element |
001 |
2191002 |
||
|
55 |
1.3 |
WG9326190050+004/2 |
filter element |
001 |
2191002 |
||
|
56 |
1.4 |
WG9326190050+005/2 |
security filter element |
001 |
2191002 |
||
|
38 |
2 |
190003989365 |
Hose clamp |
002 |
2191002 |
||
|
46 |
3 |
WG1200190040 |
Switch |
001 |
2191002 |
||
|
15 |
4 |
AZ9003980026 |
Hose clamp |
001 |
2191002 |
||
|
13 |
5 |
WG9326190020 |
intake duct |
001 |
2191002 |
||
|
18 |
6 |
ZQ32008 |
Hexagon nuts with flange |
001 |
2191002 |
||
|
19 |
7 |
ZQ1840825 |
Hexagon bolts with flange |
001 |
2191002 |
||
|
16 |
8 |
WG9326191290 |
bracket |
001 |
2191002 |
||
|
20 |
9 |
ZQ32010 |
Hexagon nuts with flange |
001 |
2191002 |
||
|
21 |
10 |
ZQ1841025 |
Hexagon bolts with flange |
001 |
2191002 |
||
|
26 |
11 |
ZQ1841035 |
Hexagon bolts with flange |
006 |
2191002 |
||
|
27 |
12 |
ZQ32010 |
Hexagon nuts with flange |
006 |
2191002 |
||
|
22 |
13 |
WG9326191280 |
air filter bracket |
002 |
2191002 |
||
|
50 |
14 |
ZQ32318T13F3 |
Hexagon nuts with flange |
006 |
2191002 |
||
|
51 |
15 |
ZQ1851850TF6 |
Hexagon bolts with flange |
006 |
2191002 |
||
|
36 |
16 |
WG9326190120 |
hose |
001 |
2191002 |
||
|
34 |
17 |
WG9326190125 |
pipe |
001 |
2191002 |
||
|
39 |
18 |
AZ9003980026 |
Hose clamp |
002 |
2191002 |
||
