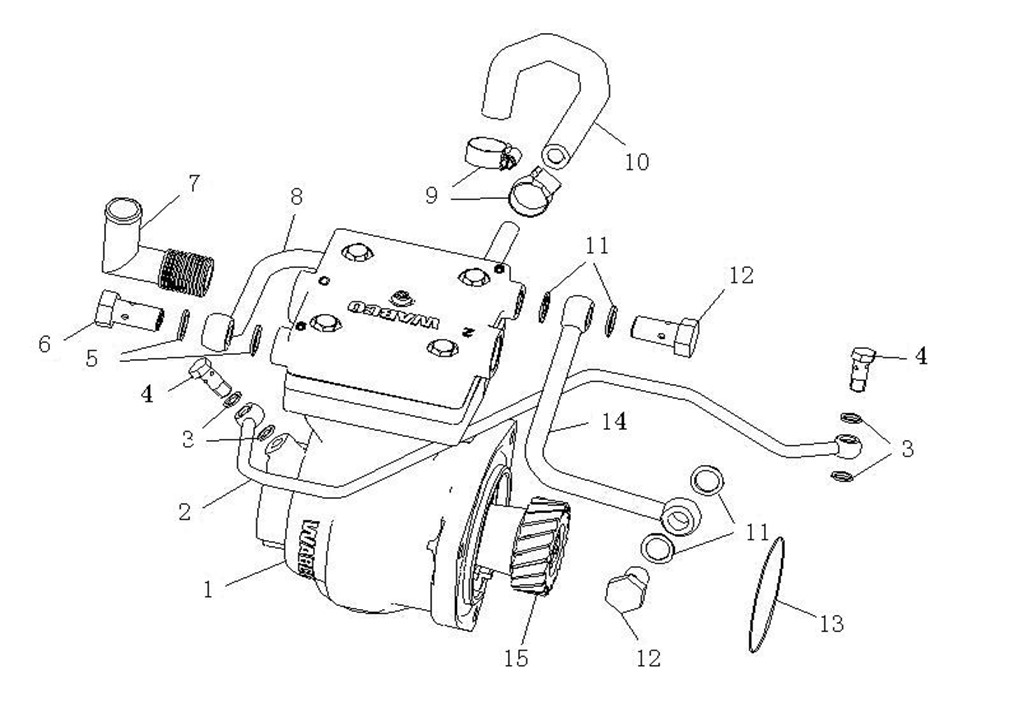

2130049 Air Compressor
Unit2130049Detail
|
Unit2130049Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
VG1034130019 |
Air Compressor |
001 |
2130049 |
||
|
57 |
1.1 |
VG1034130019+001/1 |
Maintenance package (0367) |
001 |
2130049 |
||
|
58 |
1.2 |
VG1034130019+002/1 |
Maintenance package (0367) |
001 |
2130049 |
||
|
9 |
2 |
VG1034130026 |
Oil Pipe |
001 |
2130049 |
||
|
15 |
3 |
VG9003080003 |
Gasket |
004 |
2130049 |
||
|
12 |
4 |
VG1034070002 |
Bolt |
002 |
2130049 |
||
|
36 |
5 |
VG1034130043 |
Gasket |
002 |
2130049 |
||
|
42 |
6 |
VG1246080014 |
Hollow bolt |
002 |
2130049 |
||
|
52 |
7 |
VG1034130036 |
Nozzle |
001 |
2130049 |
||
|
18 |
8 |
VG1038130134 |
pipe |
001 |
2130049 |
||
|
31 |
9 |
90003989336 |
Hose clamp |
002 |
2130049 |
||
|
28 |
10 |
VG1034130018 |
xiangjiaoguan |
001 |
2130049 |
||
|
61 |
11 |
VG1034130043 |
Gasket |
004 |
2130049 |
||
|
32 |
12 |
VG1246080014 |
Hollow bolt |
001 |
2130049 |
||
|
6 |
13 |
VG1034130033 |
O-Ring |
001 |
2130049 |
||
|
39 |
14 |
VG1034130028 |
Water Pipe |
001 |
2130049 |
||
|
3 |
15 |
VG1034130025 |
Gear |
001 |
2130049 |
||
|
21 |
16 |
VG1034130023 |
pipe clip |
001 |
2130049 |
||
|
26 |
17 |
Q218B1230 |
Screw |
001 |
2130049 |
||
|
27 |
18 |
Q41812 |
Wave washer |
001 |
2130049 |
||
|
49 |
19 |
VG1034130035 |
Nut |
001 |
2130049 |
||
|
23 |
20 |
VG1034130022 |
dian kuai |
001 |
2130049 |
||
