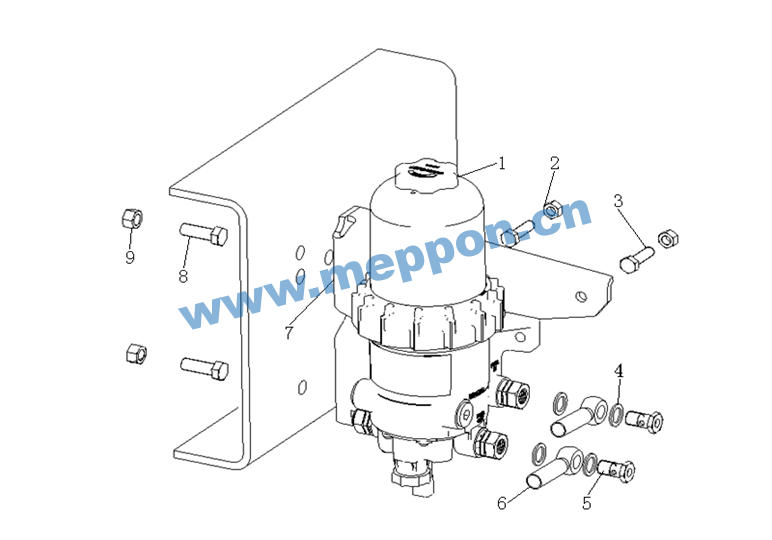

2120096 fuel filter install
Unit2120096Detail
|
Unit2120096Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
3 |
1 |
WG9925550110 |
Fuel pre filter with heater |
001 |
2120096 |
||
|
18 |
2 |
ZQ32010 |
Hexagon nuts with flange |
002 |
2120096 |
||
|
17 |
3 |
ZQ1841035 |
Hexagon bolts with flange |
002 |
2120096 |
||
|
15 |
4 |
AZ9003090016 |
Gasket |
004 |
2120096 |
||
|
14 |
5 |
190003962627 |
Hollow bolt |
002 |
2120096 |
||
|
12 |
6 |
WG9725550004 |
Pipe joint (12 x1. 5 – M16) |
002 |
2120096 |
||
|
1 |
7 |
WG9725551349 |
bracket |
001 |
2120096 |
||
|
19 |
8 |
ZQ1851235TF6 |
Hexagon bolts with flange |
002 |
2120096 |
||
|
20 |
9 |
ZQ32312T13F6 |
Hexagon nuts with flange |
002 |
2120096 |
||
|
16 |
10 |
AZ9003090016 |
Gasket |
002 |
2120096 |
||
