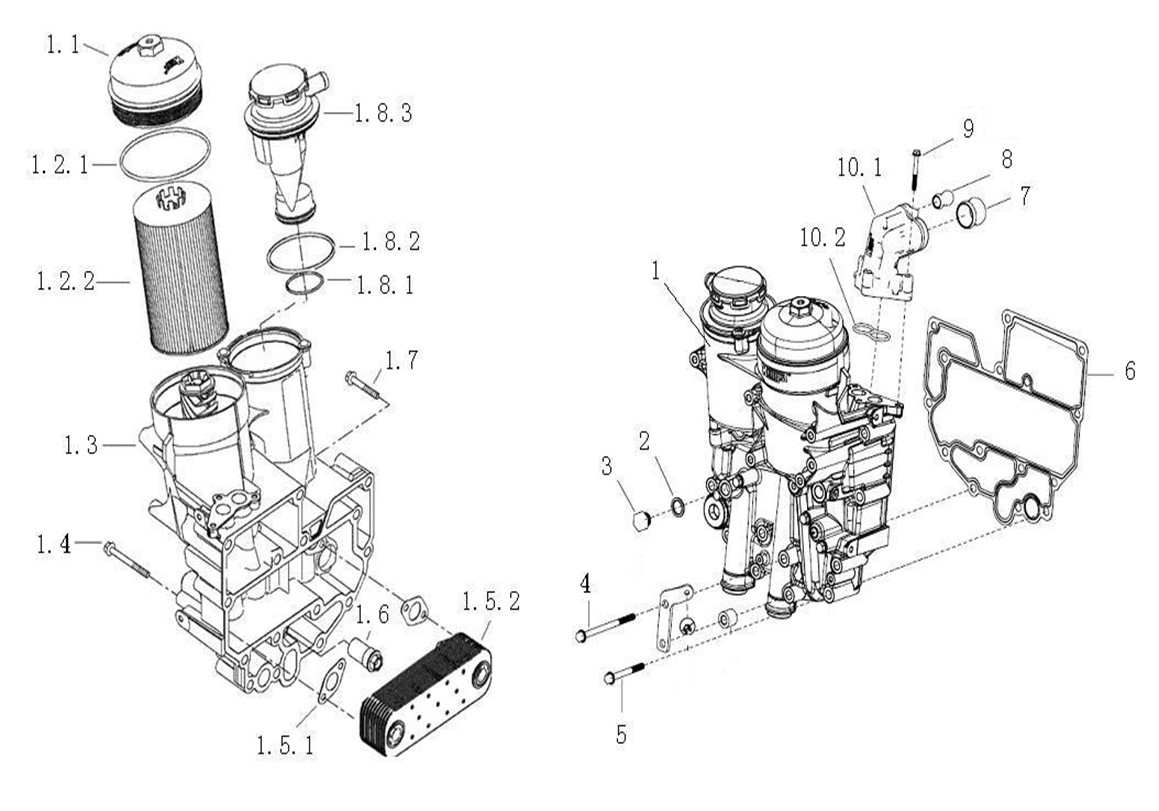

2120055 oil filter and oil cooler
Unit2120055Detail
|
Unit2120055Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
201V05000-7040 |
OIL MODULE (OIL FILTER AND COOLER) |
001 |
2120055 |
||
|
9 |
1.1 |
200V05505-0011 |
COVER F OELFILTER M DICHTRING |
001 |
2120055 |
||
|
5 |
1.2 |
200V05504-0107 |
Oil filter element |
001 |
2120055 |
||
|
8 |
1.2.1 |
200V96501-0558 |
TORIC SEAL F OELFILTERDECKEL |
001 |
2120055 |
||
|
7 |
1.2.2 |
200V05504-0108 |
Oil filter element |
001 |
2120055 |
||
|
3 |
1.3 |
201V05005-3001 |
OIL MODULE HOUSING |
001 |
2120055 |
||
|
15 |
1.4 |
MQ6-03215-8315 |
HEX BOLT M 8X80-8.8-MAN183-B1 |
002 |
2120055 |
||
|
11 |
1.5 |
200V05601-0172 |
OIL COOLER MIT DICHTUNG |
001 |
2120055 |
||
|
13 |
1.5.1 |
MQ6-56254-2203 |
GASKET 26X48X1,0-M3219-AFOE 2 |
002 |
2120055 |
||
|
12 |
1.5.2 |
200V05601-0171 |
OIL COOLER |
001 |
2120055 |
||
|
4 |
1.6 |
202V05405-0014 |
PRESSURE RELIEF VALVE |
001 |
2120055 |
||
|
14 |
1.7 |
MQ6-03215-8311 |
HEX BOLT M 8X55-8.8-MAN183-B1 |
002 |
2120055 |
||
|
16 |
1.8 |
200V01804-0024 |
OIL SEPARATOR M DICHTRINGE |
001 |
2120055 |
||
|
19 |
1.8.1 |
200V96501-0645 |
O-RING 55×3 |
001 |
2120055 |
||
|
18 |
1.8.2 |
200V96501-0644 |
O-RING 100×4 |
001 |
2120055 |
||
|
17 |
1.8.3 |
200V01804-0025 |
OIL SEPARATOR ELEMENT |
001 |
2120055 |
||
|
39 |
2 |
MQ6-56631-0109 |
SEALING RING BS-18,7 X26,0 -ST/FPM1-80 |
001 |
2120055 |
||
|
38 |
3 |
MQ6-08042-0605 |
SCREW PLUG M18X1,5-ST-A3C |
001 |
2120055 |
||
|
23 |
4 |
MQ6-03216-8420 |
HEX BOLT M10X130-10.9-MAN183-B1 |
004 |
2120055 |
||
|
22 |
5 |
MQ6-03216-8415 |
HEX BOLT M10X80-10.9-MAN183-B1 |
010 |
2120055 |
||
|
20 |
6 |
202V05901-0145 |
GASKET |
001 |
2120055 |
||
|
34 |
7 |
200V98182-0092 |
EXTENSION TUBE DMR37/DN29 F OEL |
001 |
2120055 |
||
|
32 |
8 |
200V98182-0091 |
EXTENSION TUBE DMR20/DN14 F OEL |
001 |
2120055 |
||
|
37 |
9 |
MQ6-03216-8310 |
HEX BOLT M8X50-10.9-MAN183-B1 |
003 |
2120055 |
||
|
25 |
10 |
200V05440-0003 |
FLANGE M DICHTUNG |
001 |
2120055 |
||
|
28 |
10.1 |
200V05440-0004/1 |
FLANGE |
001 |
2120055 |
||
|
27 |
10.2 |
200V05901-0135/1 |
GASKET F WINKELFLANSCH |
001 |
2120055 |
||
|
24 |
11 |
MQ6-03216-8418 |
HEX BOLT M10X110-10.9-MAN183-B1 |
001 |
