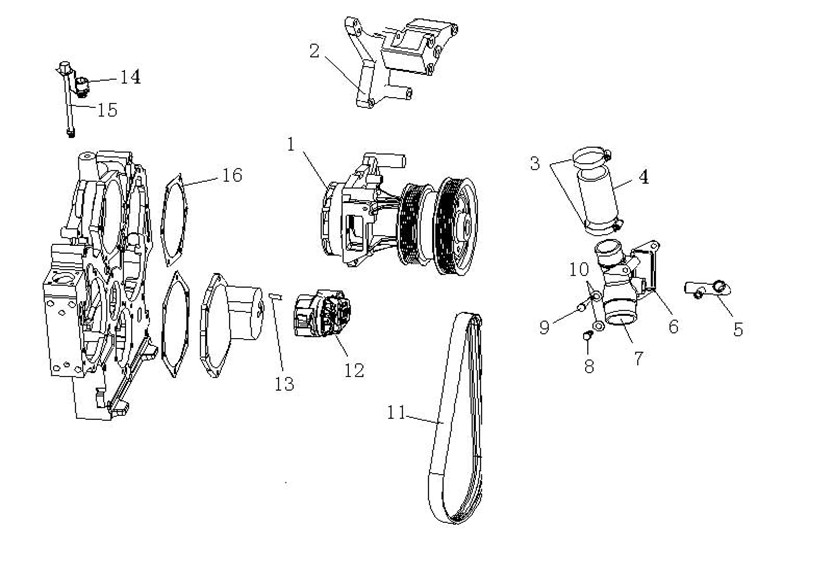

2060117 Water pump and fan
Unit2060117Detail
|
Unit2060117Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
13 |
1 |
VG1500060051 |
Water pump assembly |
001 |
2060117 |
||
|
96 |
2 |
VG1500130018A |
Bracket |
001 |
2060117 |
||
|
47 |
3 |
Q150B1075TF2 |
Bolt |
001 |
2060117 |
||
|
39 |
4 |
VG61000060276 |
Hose |
001 |
2060117 |
||
|
53 |
5 |
VG1560060004 |
Nozzle assembly |
001 |
2060117 |
||
|
69 |
6 |
VG14060024 |
Gasket |
001 |
2060117 |
||
|
50 |
7 |
VG1560060023 |
Nozzle |
001 |
2060117 |
||
|
12 |
8 |
190003802424 |
Bolt |
001 |
2060117 |
||
|
11 |
9 |
190003800467 |
Bolt |
001 |
2060117 |
||
|
38 |
10 |
190003932023 |
Wave washer |
002 |
2060117 |
||
|
111 |
11 |
VG1069020010 |
Belt |
001 |
2060117 |
||
|
36 |
12 |
VG2600060313 |
Tensioner |
001 |
2060117 |
||
|
49 |
13 |
Q5211022 |
Pin |
001 |
2060117 |
||
|
110 |
14 |
Q150B1625 |
Bolt |
001 |
2060117 |
||
|
100 |
15 |
VG2600060460 |
Grease nipple |
001 |
2060117 |
||
|
7 |
16 |
VG140608 |
Gasket |
001 |
2060117 |
||
|
1 |
17 |
190003802424 |
Bolt |
006 |
2060117 |
||
|
2 |
18 |
190003888451 |
Nut |
006 |
2060117 |
||
|
44 |
19 |
190003989308 |
Hose clamp |
002 |
2060117 |
||
|
45 |
20 |
190003802432 |
Bolt |
001 |
2060117 |
||
|
46 |
21 |
190014040007 |
Washer |
001 |
2060117 |
||
|
48 |
22 |
190014040008 |
Washer |
001 |
2060117 |
||
|
66 |
23 |
190003800575 |
Bolt |
001 |
2060117 |
||
|
67 |
24 |
190014070002 |
Washer |
001 |
2060117 |
||
