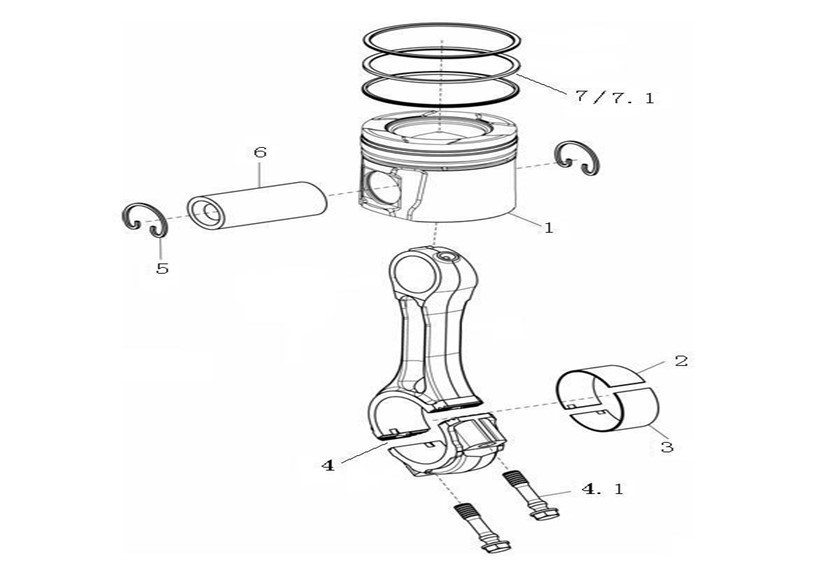

2030024 Piston and connecting rod group
Unit2030024Detail
Unit2030024Detail |
|||||||
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
77 |
1 |
VG1246030015 |
Piston |
006 |
2030024 |
||
28 |
2 |
VG1246030011 |
Bushing |
006 |
2030024 |
||
32 |
3 |
VG1246030012 |
Bushing |
006 |
2030024 |
||
17 |
4 |
AZ1246030007 |
Connecting rod assembly |
006 |
2030024 |
||
26 |
4.1 |
VG1246030013 |
Bolt |
002 |
2030024 |
||
7 |
5 |
VG1246030003 |
Circlip |
012 |
2030024 |
||
4 |
6 |
VG1246030002 |
Pin |
006 |
2030024 |
||
36 |
7 |
VG1540030005 |
Piston rings |
001 |
2030024 |
||
50 |
7.1 |
VG1099030006 |
Piston rings |
006 |
2030024 |
