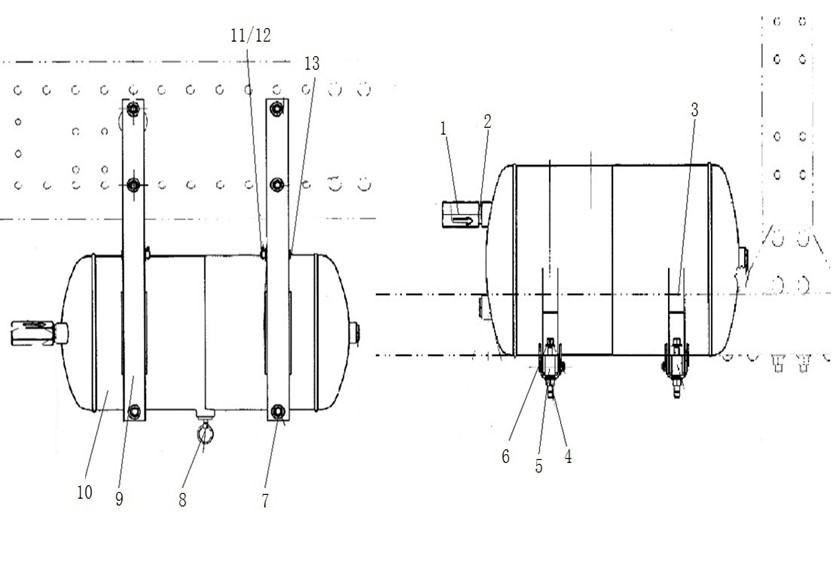

8830019 Air Reservoir 20L St.
Unit8830019Detail
|
Unit8830019Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
30 |
1 |
WG9000360507 |
Check valve |
001 |
8830019 |
||
|
33 |
2 |
WG9000361102 |
Nozzle |
001 |
8830019 |
||
|
24 |
3 |
WG9700360001 |
belt assembly |
002 |
8830019 |
||
|
20 |
4 |
ZQ32010T13F6 |
Hexagon nuts with flange |
004 |
8830019 |
||
|
21 |
5 |
WG9925360874 |
Sleeve |
004 |
8830019 |
||
|
19 |
6 |
ZQ1841060TF6 |
Hexagon bolts with flange |
004 |
8830019 |
||
|
26 |
7 |
ZQ32010 |
Hexagon nuts with flange |
002 |
8830019 |
||
|
13 |
8 |
WG9000361402 |
Drain valve |
001 |
8830019 |
||
|
15 |
9 |
WG9731360002 |
Bracket assembly |
002 |
8830019 |
||
|
3 |
10 |
WG9000360799 |
Aluminium Air Reservoir Φ246/20L |
001 |
8830019 |
||
|
28 |
11 |
Q40110 |
Washer |
002 |
8830019 |
||
|
29 |
12 |
Q5003214 |
Pin |
002 |
8830019 |
||
|
27 |
13 |
Q5101048 |
Pin |
002 |
8830019 |
||
|
5 |
14 |
WG9000361007 |
Gasket |
001 |
8830019 |
||
|
7 |
15 |
WG9000361008 |
Clip |
001 |
8830019 |
||
|
9 |
16 |
WG9000361009 |
Nut |
001 |
8830019 |
||
|
11 |
17 |
WG9000361012 |
Plug |
001 |
8830019 |
||
|
35 |
18 |
WG9000361007 |
Gasket |
001 |
8830019 |
||
|
37 |
19 |
WG9000361008 |
Clip |
001 |
8830019 |
||
|
39 |
20 |
WG9000361009 |
Nut |
001 |
8830019 |
||
|
41 |
21 |
WG9000361303 |
T-PLUG 2-NW9 NG12 |
001 |
8830019 |
||
|
43 |
22 |
WG9000361204 |
Nozzle |
001 |
8830019 |
||
()
