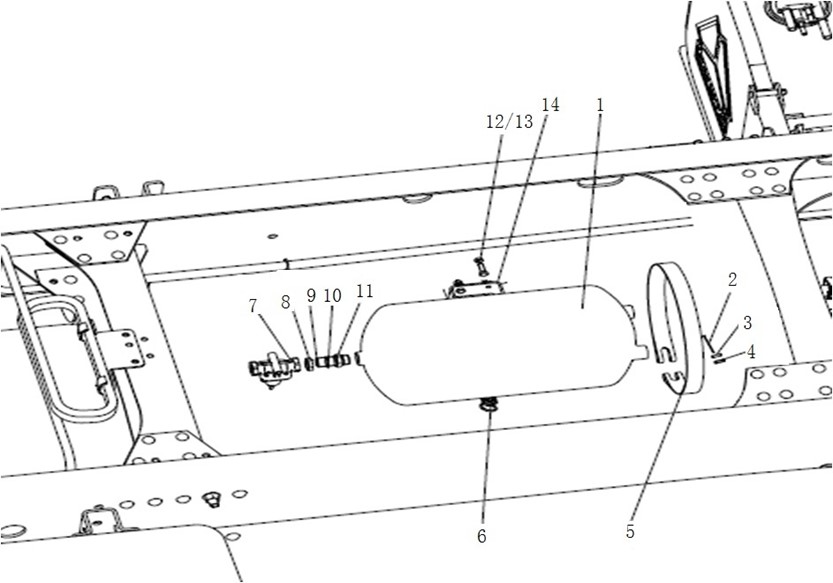

8830018 Air Reservoir 20L
Unit8830018Detail
|
Unit8830018Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
3 |
1 |
WG9000360799 |
Aluminium Air Reservoir Φ246/20L |
001 |
8830018 |
||
|
21 |
2 |
Q218B0880 |
Screw |
002 |
8830018 |
||
|
17 |
3 |
WG700 550013 |
Pin |
002 |
8830018 |
||
|
13 |
4 |
WG09 190017 |
Pin |
002 |
8830018 |
||
|
11 |
5 |
WG9700360003 |
belt assembly |
002 |
8830018 |
||
|
24 |
6 |
WG9000361402 |
Drain valve |
001 |
8830018 |
||
|
28 |
7 |
WG9000360519 |
Valve |
001 |
8830018 |
||
|
32 |
8 |
WG9000361015 |
Nut |
001 |
8830018 |
||
|
36 |
9 |
WG9000361017 |
O-ring |
002 |
8830018 |
||
|
34 |
10 |
WG9000361016 |
Gasket |
002 |
8830018 |
||
|
31 |
11 |
190003559385 |
Nozzle |
001 |
8830018 |
||
|
9 |
12 |
ZQ1841035 |
Hexagon bolts with flange |
004 |
8830018 |
||
|
10 |
13 |
ZQ32010 |
Hexagon nuts with flange |
004 |
8830018 |
||
|
5 |
14 |
WG9100360104 |
Bracket assembly |
001 |
8830018 |
||
|
22 |
15 |
WG9000361204 |
Nozzle |
002 |
8830018 |
||
|
26 |
16 |
WG9000361306 |
Nozzle |
002 |
8830018 |
||
|
38 |
17 |
WG9000361201 |
Nozzle |
001 |
8830018 |
||
|
40 |
18 |
WG9000361007 |
Gasket |
003 |
8830018 |
||
|
42 |
19 |
WG9000361008 |
Clip |
003 |
8830018 |
||
|
44 |
20 |
WG9000361009 |
Nut |
003 |
8830018 |
||
|
46 |
21 |
190003179785 |
Plastic tube |
004 |
8830018 |
||
