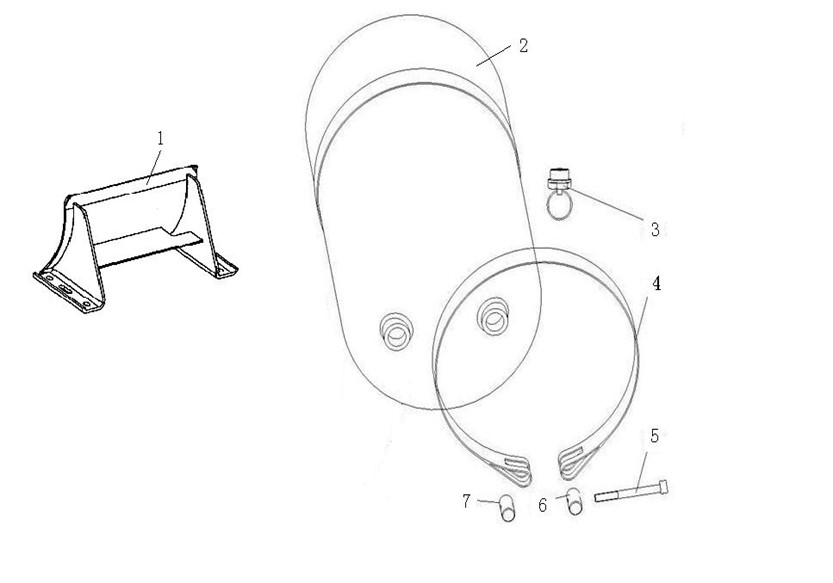

8830004 Air Reservoir 20L St.for Cab mounting system
Unit8830004Detail
|
Unit8830004Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
6 |
1 |
AZ9718360070 |
Bracket assembly |
001 |
8830004 |
||
|
1 |
2 |
WG9000360700 |
Air tank |
001 |
8830004 |
||
|
26 |
3 |
WG9000361402 |
Drain valve |
001 |
8830004 |
||
|
13 |
4 |
WG99112270012 |
Strap assembly |
002 |
8830004 |
||
|
25 |
5 |
Q218B0880 |
Screw |
002 |
8830004 |
||
|
21 |
6 |
WG700 550013 |
Pin |
002 |
8830004 |
||
|
17 |
7 |
WG09 190017 |
Pin |
002 |
8830004 |
||
|
11 |
8 |
ZQ1841030TF6 |
Hexagon bolts with flange |
004 |
8830004 |
||
|
12 |
9 |
ZQ32010T13F6 |
Hexagon nuts with flange |
004 |
8830004 |
||
|
28 |
10 |
WG9000360519 |
Valve |
001 |
8830004 |
||
|
32 |
11 |
WG9000361007 |
Gasket |
002 |
8830004 |
||
|
34 |
12 |
WG9000361008 |
Clip |
002 |
8830004 |
||
|
36 |
13 |
WG9000361009 |
Nut |
002 |
8830004 |
||
|
38 |
14 |
ZQ1840880 |
Hexagon bolts with flange |
001 |
8830004 |
||
|
39 |
15 |
ZQ32008 |
Hexagon nuts with flange |
001 |
8830004 |
||
|
40 |
16 |
WG9000361204 |
Nozzle |
001 |
8830004 |
||
|
42 |
17 |
WG9000361106 |
Nozzle |
001 |
8830004 |
||
|
44 |
18 |
WG9000361101 |
Nozzle |
001 |
8830004 |
||
