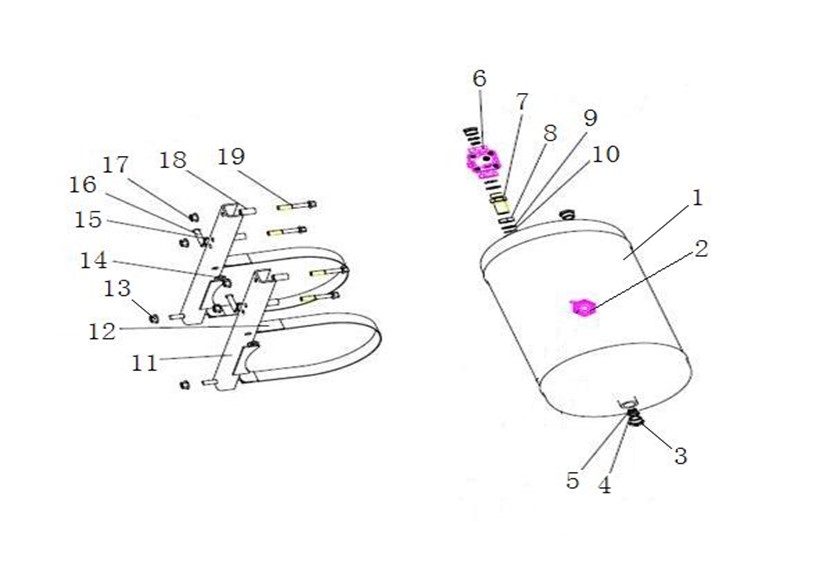

8830003 Air Reservoir 20L St.
Unit8830003Detail
|
Unit8830003Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
2 |
1 |
WG9000360700 |
Air tank |
001 |
8830003 |
||
|
7 |
2 |
WG9000361402 |
Drain valve |
001 |
8830003 |
||
|
13 |
3 |
WG9000361009 |
Nut |
003 |
8830003 |
||
|
11 |
4 |
WG9000361008 |
Clip |
003 |
8830003 |
||
|
9 |
5 |
WG9000361007 |
Gasket |
003 |
8830003 |
||
|
31 |
6 |
WG9000360519 |
Valve |
001 |
8830003 |
||
|
35 |
7 |
190003559385 |
Nozzle |
001 |
8830003 |
||
|
36 |
8 |
WG9000361015 |
Nut |
001 |
8830003 |
||
|
38 |
9 |
WG9000361016 |
Gasket |
002 |
8830003 |
||
|
40 |
10 |
WG9000361017 |
O-ring |
002 |
8830003 |
||
|
15 |
11 |
WG9731360002 |
Bracket assembly |
002 |
8830003 |
||
|
22 |
12 |
WG9731360005 |
Strap assembly |
002 |
8830003 |
||
|
48 |
13 |
ZQ32010 |
Hexagon nuts with flange |
002 |
8830003 |
||
|
27 |
14 |
Q40110 |
Washer |
002 |
8830003 |
||
|
28 |
15 |
Q5003214 |
Pin |
002 |
8830003 |
||
|
26 |
16 |
Q5101048 |
Pin |
002 |
8830003 |
||
|
25 |
17 |
ZQ32010T13F6 |
Hexagon nuts with flange |
004 |
8830003 |
||
|
18 |
18 |
WG9925360874 |
Sleeve |
004 |
8830003 |
||
|
21 |
19 |
ZQ1841065TF6 |
Hexagon bolts with flange |
004 |
8830003 |
||
|
29 |
20 |
WG9000361204 |
Nozzle |
003 |
8830003 |
||
|
42 |
21 |
WG9000361204 |
Nozzle |
001 |
8830003 |
||
|
44 |
22 |
WG9000361202 |
Nozzle |
001 |
8830003 |
||
|
46 |
23 |
WG9000361106 |
Nozzle |
001 |
8830003 |
||
()
