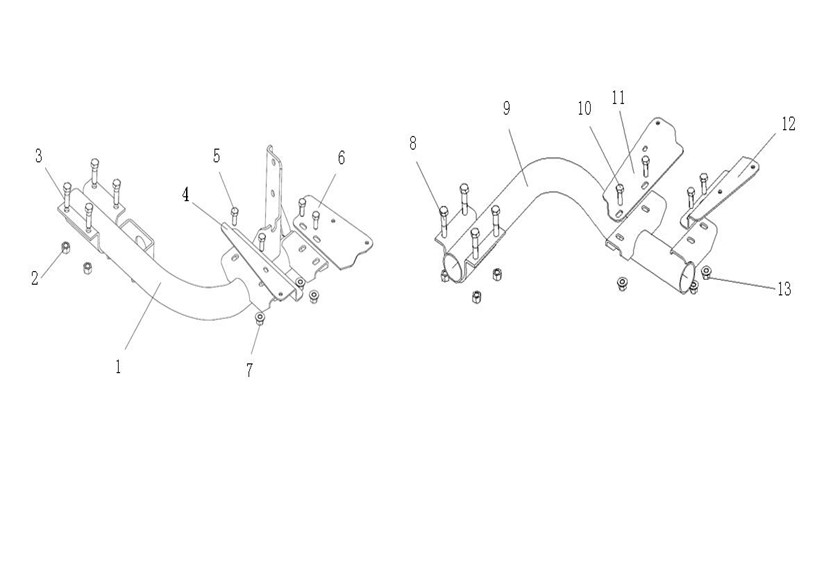

8470002 the seat of footplate and front drawing equipment
Unit8470002Detail
Unit8470002Detail |
|||||||
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
1 |
1 |
752W42993-5571 |
the assembly of the L-footplate |
001 |
8470002 |
||
65 |
2 |
ZQ361B12T13F6 |
Hexagon nuts ,style 2 |
008 |
8470002 |
||
63 |
3 |
ZQ151B1240TF6 |
Hexagon head bolts |
004 |
8470002 |
||
27 |
4 |
752W42993-0565 |
left back bracket of the frist step |
001 |
8470002 |
||
38 |
5 |
ZQ150B1025TF6 |
Hexagon head bolts |
004 |
8470002 |
||
32 |
6 |
752W42993-0556 |
left front bracket of the frist step |
001 |
8470002 |
||
39 |
7 |
ZQ32410T13F6 |
Hexagon flange nuts with teeth |
004 |
8470002 |
||
64 |
8 |
ZQ151B1255TF6 |
Hexagon head bolts |
004 |
8470002 |
||
40 |
9 |
752W42993-5580 |
right step bracket assembly |
001 |
8470002 |
||
61 |
10 |
ZQ150B1030TF6 |
Hexagon head bolts |
004 |
8470002 |
||
49 |
11 |
752W42993-0555 |
right back bracket of the frist step |
001 |
8470002 |
||
55 |
12 |
752W42993-0557 |
right front bracket of the frist step |
001 |
8470002 |
||
62 |
13 |
ZQ32410T13F6 |
Hexagon flange nuts with teeth |
004 |
8470002 |
