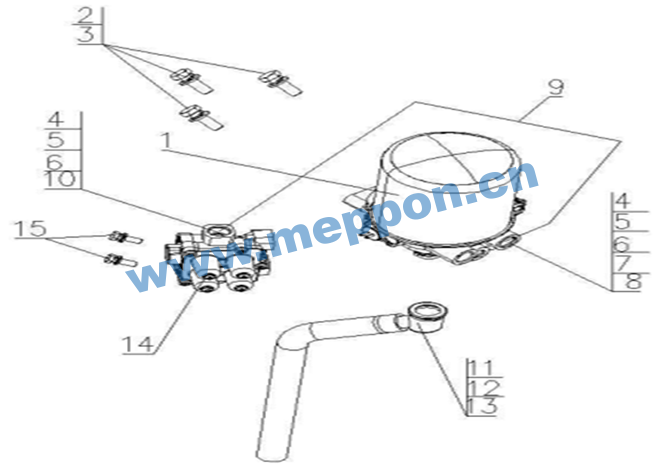

8366834 The assembly of Air Dryer and Four-Circuit Protection Valve
Unit8366834Detail
Unit8366834Detail |
|||||||
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
1 |
1 |
WG9000360548 |
Air dryer |
001 |
8366834 |
||
4 |
2 |
Q41212 |
Outer serrated lock washer |
003 |
8366834 |
||
5 |
3 |
Q151C1225 |
Hex bolt |
003 |
8366834 |
||
6 |
4 |
WG9000361007 |
Gasket |
001 |
8366834 |
||
8 |
5 |
WG9000361008 |
Clip |
001 |
8366834 |
||
10 |
6 |
WG9000361009 |
Nut |
001 |
8366834 |
||
30 |
7 |
WG9000361327 |
T-PLUG NW12 NG12 M12×1.5 |
001 |
8366834 |
||
32 |
8 |
WG9000361401 |
Test connector |
001 |
8366834 |
||
23 |
9 |
AZ9003170002 |
Plastic tube |
028 |
8366834 |
||
12 |
10 |
WG9000361203 |
Nozzle |
001 |
8366834 |
||
14 |
11 |
WG9725360955 |
Venting guide |
001 |
8366834 |
||
16 |
12 |
WG9525361501 |
Tube |
001 |
8366834 |
||
19 |
13 |
190003989340 |
Hose clamp |
001 |
8366834 |
||
20 |
14 |
WG9000360523 |
Four-circuit protection valve |
001 |
8366834 |
||
22 |
15 |
ZQ1840825 |
Hexagon bolts with flange |
002 |
8366834 |
