8366194 Dryer – four circuit valve section

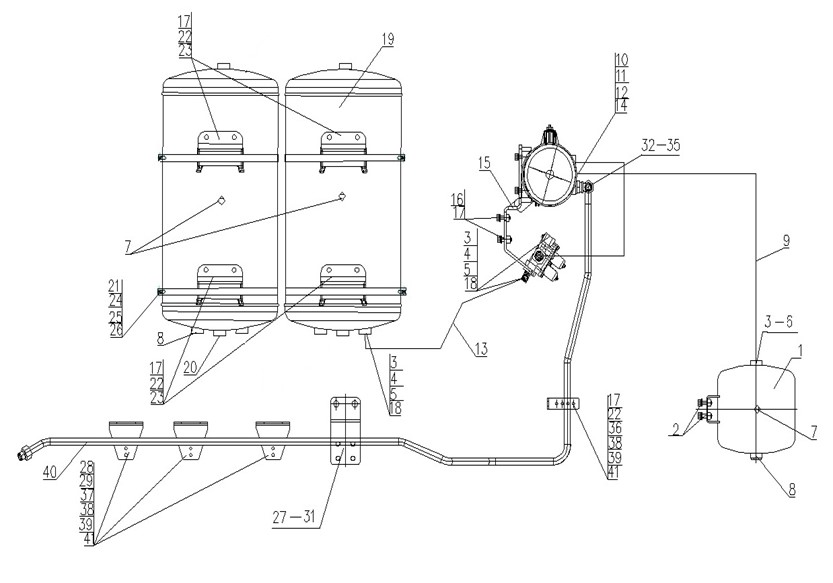

Unit8366194Detail
|
Unit8366194Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
WG9000360707 |
Air Reservoir 5L |
001 |
8366194 |
||
|
3 |
2 |
ZQ1840830 |
Hexagon bolts with flange |
003 |
8366194 |
||
|
4 |
3 |
WG9000361007 |
Gasket |
001 |
8366194 |
||
|
6 |
4 |
WG9000361008 |
Clip |
001 |
8366194 |
||
|
8 |
5 |
WG9000361009 |
Nut |
001 |
8366194 |
||
|
10 |
6 |
WG9000361202 |
Nozzle |
001 |
8366194 |
||
|
12 |
7 |
WG9000361402 |
Drain valve |
001 |
8366194 |
||
|
14 |
8 |
WG9000361012 |
Plug |
001 |
8366194 |
||
|
16 |
9 |
190003179781 |
Plastic tube |
034 |
8366194 |
||
|
17 |
10 |
WG9000361004 |
Gasket |
001 |
8366194 |
||
|
19 |
11 |
WG9000361005 |
Clip |
001 |
8366194 |
||
|
21 |
12 |
WG9000361006 |
Nut |
001 |
8366194 |
||
|
25 |
13 |
190003179785 |
Plastic tube |
300 |
8366194 |
||
|
23 |
14 |
WG9000361201 |
Nozzle |
001 |
8366194 |
||
|
26 |
15 |
WG9525361301 |
Dryer bracket |
001 |
8366194 |
||
|
29 |
16 |
ZQ1841025 |
Hexagon bolts with flange |
004 |
8366194 |
||
|
30 |
17 |
ZQ32010 |
Hexagon nuts with flange |
004 |
8366194 |
||
|
37 |
18 |
WG9000361204 |
Nozzle |
002 |
8366194 |
||
|
43 |
19 |
WG9000360717 |
Air tank |
002 |
8366194 |
||
|
53 |
20 |
WG9000361028 |
Male Nut NG12/IG M22X1.5/M16X1.5 |
002 |
8366194 |
||
|
55 |
21 |
WG9900360001 |
Strap assembly |
004 |
8366194 |
||
|
58 |
22 |
ZQ1841030 |
Hexagon bolts with flange |
008 |
8366194 |
||
|
60 |
23 |
WG9525760321 |
BRACKET |
004 |
8366194 |
||
|
63 |
24 |
WG09 190017 |
Pin |
004 |
8366194 |
||
|
66 |
25 |
WG700 550013 |
Pin |
004 |
8366194 |
||
|
69 |
26 |
Q218B0895 |
Hexagon socket head screw (full thread) |
004 |
8366194 |
||
|
70 |
27 |
WG9525361001 |
bracket |
001 |
8366194 |
||
|
73 |
28 |
ZQ1851240 |
Hexagon bolts with flange |
002 |
8366194 |
||
|
74 |
29 |
ZQ32312 |
Hexagon nuts with flange |
002 |
8366194 |
||
|
75 |
30 |
WG9100360134 |
Spacer |
002 |
8366194 |
||
|
77 |
31 |
190003171393 |
Cable binder |
002 |
8366194 |
||
|
78 |
32 |
AZ9003550040 |
Nozzle |
001 |
8366194 |
||
|
79 |
33 |
190003559547 |
Nut |
001 |
8366194 |
||
|
80 |
34 |
WG9100360319 |
Gasket |
001 |
8366194 |
||
|
83 |
35 |
1680 250092 |
Gasket |
001 |
8366194 |
||
|
84 |
36 |
WG9525361010 |
bracket |
001 |
8366194 |
||
|
87 |
37 |
WG9525361011 |
bracket |
003 |
8366194 |
||
|
90 |
38 |
ZQ32006 |
Hexagon nuts with flange |
004 |
8366194 |
||
|
91 |
39 |
ZQ1840625 |
Hexagon bolts with flange |
004 |
8366194 |
||
|
96 |
40 |
WG9531361618 |
steel tube |
001 |
8366194 |
||
|
99 |
41 |
WG9000365401 |
Single tube clip |
004 |
8366194 |
||
()
