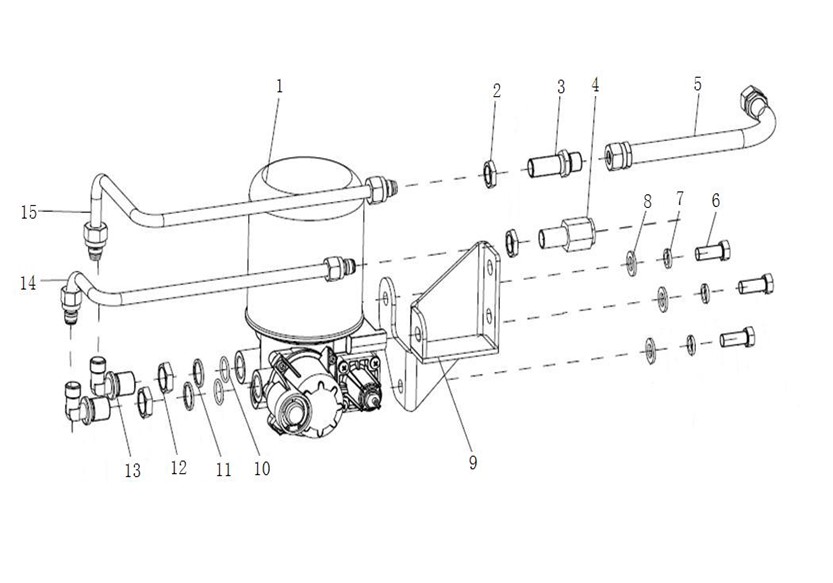

8366096 brake
Unit8366096Detail
Unit8366096Detail |
|||||||
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
1 |
1 |
LG9700360015 |
Air dryer (integrated) |
001 |
8366096 |
||
33 |
2 |
LG9700360513 |
Hexagonal thin nut M18x1.5 |
002 |
8366096 |
||
29 |
3 |
LG9700360578 |
Straight connector 2XM18 |
001 |
8366096 |
||
27 |
4 |
LG9700362580 |
brake |
001 |
8366096 |
||
53 |
5 |
LG9700360131 |
comprssor steel tube |
001 |
8366096 |
||
7 |
6 |
Q151C1230 |
Bolt |
003 |
8366096 |
||
9 |
7 |
Q40312 |
Spring washer |
003 |
8366096 |
||
8 |
8 |
Q40112 |
Washer |
003 |
8366096 |
||
3 |
9 |
LG9700361168 |
brake |
001 |
8366096 |
||
43 |
10 |
LG9700360506 |
O-ring |
002 |
8366096 |
||
38 |
11 |
LG9700360505 |
Support washer M22 |
002 |
8366096 |
||
48 |
12 |
LG9700360514 |
Hexagonal thin nut M2x1.5 |
002 |
8366096 |
||
20 |
13 |
LG9700360544 |
Joint M22/M18 |
002 |
8366096 |
||
25 |
14 |
LG9700362270 |
brake |
001 |
8366096 |
||
10 |
15 |
LG9700362269 |
brake |
001 |
8366096 |
