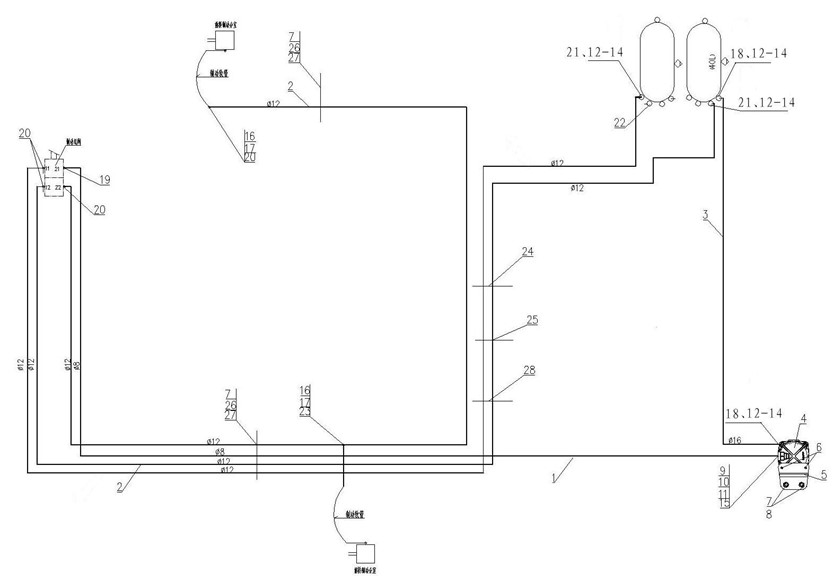

8365978 Brake part
Unit8365978Detail
|
Unit8365978Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
190003179781 |
Plastic tube |
550 |
8365978 |
||
|
2 |
2 |
AZ9003170002 |
Plastic tube |
160 |
8365978 |
||
|
3 |
3 |
190003179785 |
Plastic tube |
780 |
8365978 |
||
|
4 |
4 |
WG9000360506 |
Relay valve |
001 |
8365978 |
||
|
6 |
5 |
WG9525361306 |
bracket |
001 |
8365978 |
||
|
8 |
6 |
ZQ1841035 |
Hexagon bolts with flange |
004 |
8365978 |
||
|
9 |
7 |
ZQ32010 |
Hexagon nuts with flange |
004 |
8365978 |
||
|
10 |
8 |
ZQ32008 |
Hexagon nuts with flange |
002 |
8365978 |
||
|
11 |
9 |
WG9000361004 |
Gasket |
001 |
8365978 |
||
|
13 |
10 |
WG9000361005 |
Clip |
001 |
8365978 |
||
|
15 |
11 |
WG9000361006 |
Nut |
001 |
8365978 |
||
|
17 |
12 |
WG9000361007 |
Gasket |
004 |
8365978 |
||
|
19 |
13 |
WG9000361008 |
Clip |
004 |
8365978 |
||
|
21 |
14 |
WG9000361009 |
Nut |
004 |
8365978 |
||
|
23 |
15 |
WG9000361106 |
Nozzle |
001 |
8365978 |
||
|
25 |
16 |
WG9000361014 |
Nut |
002 |
8365978 |
||
|
27 |
17 |
WG9000361105 |
Nozzle |
002 |
8365978 |
||
|
29 |
18 |
WG9000361110 |
Nozzle |
002 |
8365978 |
||
|
31 |
19 |
WG9000361202 |
Nozzle |
001 |
8365978 |
||
|
33 |
20 |
WG9000361204 |
Nozzle |
004 |
8365978 |
||
|
35 |
21 |
WG9000361408 |
Nozzle |
002 |
8365978 |
||
|
37 |
22 |
WG9000361012 |
Plug |
001 |
8365978 |
||
|
39 |
23 |
WG9000361303 |
T-PLUG 2-NW9 NG12 |
001 |
8365978 |
||
|
41 |
24 |
WG9525360056 |
Cushion |
120 |
8365978 |
||
|
44 |
25 |
WG9525360059 |
Cushion |
030 |
8365978 |
||
|
47 |
26 |
WG9525361007 |
bracket |
002 |
8365978 |
||
|
49 |
27 |
ZQ1841035 |
Hexagon bolts with flange |
002 |
8365978 |
||
|
51 |
28 |
190003171392 |
Cable binder |
010 |
8365978 |
||
