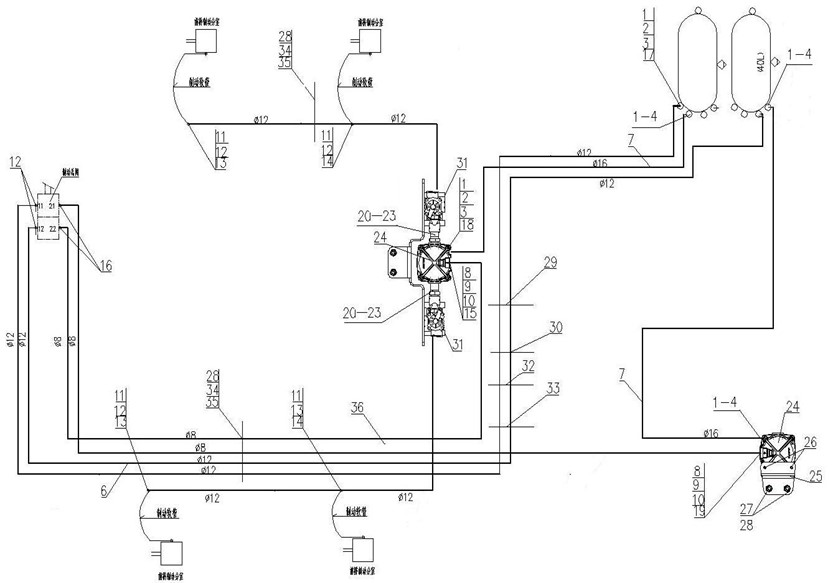

8365965 Brake part
Unit8365965Detail
|
Unit8365965Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
10 |
1 |
WG9000361007 |
Gasket |
006 |
8365965 |
||
|
12 |
2 |
WG9000361008 |
Clip |
006 |
8365965 |
||
|
14 |
3 |
WG9000361009 |
Nut |
006 |
8365965 |
||
|
34 |
4 |
WG9000361110 |
Nozzle |
003 |
8365965 |
||
|
1 |
5 |
190003179781 |
Plastic tube |
800 |
8365965 |
||
|
2 |
6 |
190003179785 |
Plastic tube |
430 |
8365965 |
||
|
3 |
7 |
AZ9003170002 |
Plastic tube |
400 |
8365965 |
||
|
4 |
8 |
WG9000361004 |
Gasket |
002 |
8365965 |
||
|
6 |
9 |
WG9000361005 |
Clip |
002 |
8365965 |
||
|
8 |
10 |
WG9000361006 |
Nut |
002 |
8365965 |
||
|
16 |
11 |
WG9000361105 |
Nozzle |
004 |
8365965 |
||
|
18 |
12 |
WG9000361204 |
Nozzle |
002 |
8365965 |
||
|
20 |
13 |
WG9000361014 |
Nut |
004 |
8365965 |
||
|
22 |
14 |
WG9000361305 |
Nozzle |
002 |
8365965 |
||
|
24 |
15 |
WG9000361201 |
Nozzle |
001 |
8365965 |
||
|
26 |
16 |
WG9000361202 |
Nozzle |
002 |
8365965 |
||
|
30 |
17 |
WG9000361408 |
Nozzle |
002 |
8365965 |
||
|
32 |
18 |
WG9000361203 |
Nozzle |
001 |
8365965 |
||
|
36 |
19 |
WG9000361106 |
Nozzle |
001 |
8365965 |
||
|
38 |
20 |
190003559385 |
Nozzle |
002 |
8365965 |
||
|
39 |
21 |
190003559547 |
Nut |
002 |
8365965 |
||
|
40 |
22 |
WG9100360319 |
Gasket |
004 |
8365965 |
||
|
43 |
23 |
1680 250092 |
Gasket |
004 |
8365965 |
||
|
44 |
24 |
WG9000360506 |
Relay valve |
002 |
8365965 |
||
|
46 |
25 |
WG9525361306 |
bracket |
001 |
8365965 |
||
|
50 |
26 |
ZQ32008 |
Hexagon nuts with flange |
002 |
8365965 |
||
|
48 |
27 |
ZQ1841030 |
Hexagon bolts with flange |
002 |
8365965 |
||
|
49 |
28 |
ZQ32010 |
Hexagon nuts with flange |
002 |
8365965 |
||
|
51 |
29 |
WG9525360056 |
Cushion |
050 |
8365965 |
||
|
54 |
30 |
WG9525360059 |
Cushion |
100 |
8365965 |
||
|
57 |
31 |
WG9525580420 |
Angle brackets |
001 |
8365965 |
||
|
59 |
32 |
WG9525360179 |
Cable binder |
016 |
8365965 |
||
|
61 |
33 |
190003171392 |
Cable binder |
016 |
8365965 |
||
|
62 |
34 |
WG9525361007 |
bracket |
002 |
8365965 |
||
|
64 |
35 |
ZQ1841035 |
Hexagon bolts with flange |
004 |
8365965 |
||
|
65 |
36 |
ZQ32010 |
Hexagon nuts with flange |
004 |
8365965 |
||
()
