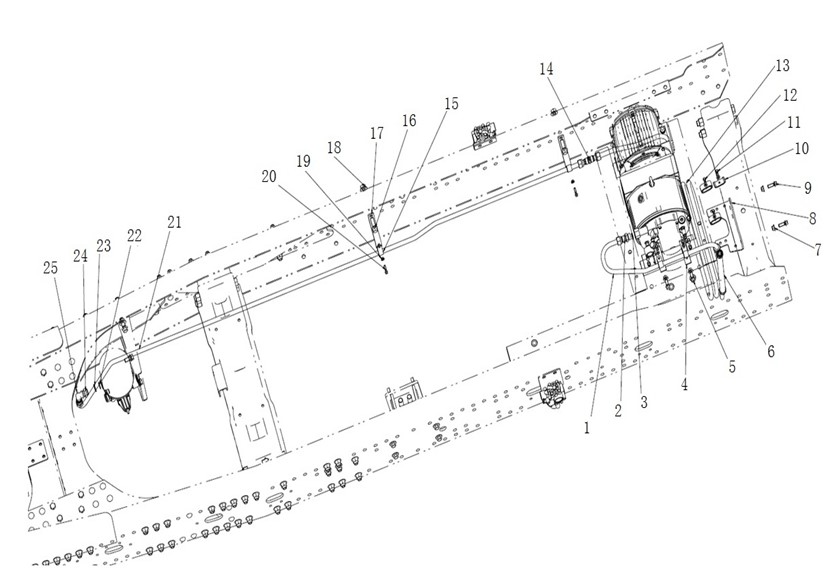

8365880 Air supply for brake system
Unit8365880Detail
|
Unit8365880Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
34 |
1 |
WG9718360826 |
Pipe |
001 |
8365880 |
||
|
3 |
2 |
Q80416 |
Nozzle |
001 |
8365880 |
||
|
2 |
3 |
190003098026 |
Gasket |
001 |
8365880 |
||
|
36 |
4 |
199012360441 |
Bracket |
002 |
8365880 |
||
|
38 |
5 |
ZQ1841025 |
Hexagon bolts with flange |
002 |
8365880 |
||
|
4 |
6 |
812W54059-0007 |
HOSE PIPE, HOSE LINE |
002 |
8365880 |
||
|
26 |
7 |
ZQ32010 |
Hexagon nuts with flange |
002 |
8365880 |
||
|
22 |
8 |
WG9918360806 |
Bracket |
001 |
8365880 |
||
|
25 |
9 |
ZQ1841030 |
Hexagon bolts with flange |
002 |
8365880 |
||
|
27 |
10 |
WG9000365404 |
Double pipe clip |
005 |
8365880 |
||
|
32 |
11 |
ZQ1840630 |
Hexagon bolts with flange |
002 |
8365880 |
||
|
31 |
12 |
ZQ1840635 |
bolt |
003 |
8365880 |
||
|
20 |
13 |
WG9718360827 |
Pipe |
001 |
8365880 |
||
|
19 |
14 |
Q80316 |
Joint |
001 |
8365880 |
||
|
14 |
15 |
WG9000365401 |
Single tube clip |
002 |
8365880 |
||
|
12 |
16 |
ZQ1851440 |
Hexagon bolts with flange |
002 |
8365880 |
||
|
10 |
17 |
WG9718360060 |
Z type Bracket |
002 |
8365880 |
||
|
13 |
18 |
ZQ32314 |
Hexagon nuts with flange |
002 |
8365880 |
||
|
18 |
19 |
ZQ32006 |
Hexagon nuts with flange |
002 |
8365880 |
||
|
44 |
20 |
ZQ1840625 |
Hexagon bolts with flange |
002 |
8365880 |
||
|
8 |
21 |
WG9718360828 |
Pipe |
001 |
8365880 |
||
|
50 |
22 |
WG9000361017 |
O-ring |
001 |
8365880 |
||
|
48 |
23 |
WG9000361016 |
Gasket |
001 |
8365880 |
||
|
46 |
24 |
WG9000361015 |
Nut |
001 |
8365880 |
||
|
45 |
25 |
AZ9003550040 |
Nozzle |
001 |
8365880 |
||
|
33 |
26 |
ZQ32006 |
Hexagon nuts with flange |
005 |
8365880 |
||
|
39 |
27 |
WG9000365401 |
Single tube clip |
002 |
8365880 |
||
|
43 |
28 |
ZQ32006 |
Hexagon nuts with flange |
002 |
8365880 |
||
()
