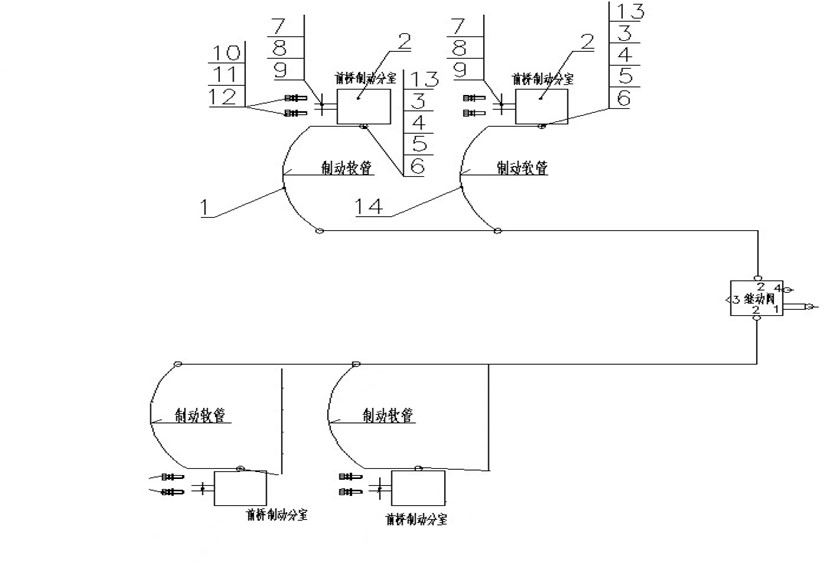

8365746 Brake chamber
Unit8365746Detail
|
Unit8365746Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
WG9525360031 |
Hose assembly |
002 |
8365746 |
||
|
13 |
2 |
WG4005362001 |
Diaphragm type brake air chamber (20″,L=194) |
004 |
8365746 |
||
|
9 |
3 |
WG9100360319 |
Gasket |
004 |
8365746 |
||
|
12 |
4 |
1680 250092 |
Gasket |
004 |
8365746 |
||
|
8 |
5 |
190003559547 |
Nut |
004 |
8365746 |
||
|
4 |
6 |
WG9003559901 |
Nozzle |
004 |
8365746 |
||
|
16 |
7 |
Q5101240 |
Pin |
004 |
8365746 |
||
|
17 |
8 |
Q5004025 |
Pin |
004 |
8365746 |
||
|
18 |
9 |
Q40112 |
Washer |
004 |
8365746 |
||
|
19 |
10 |
Q150B1235 |
Bolt |
008 |
8365746 |
||
|
20 |
11 |
Q40312 |
Spring washer |
008 |
8365746 |
||
|
21 |
12 |
Q40112 |
Washer |
008 |
8365746 |
||
|
6 |
13 |
WG9000361401 |
Test connector |
004 |
8365746 |
||
|
22 |
14 |
WG9525360057 |
Braking tube |
002 |
8365746 |
||
()
