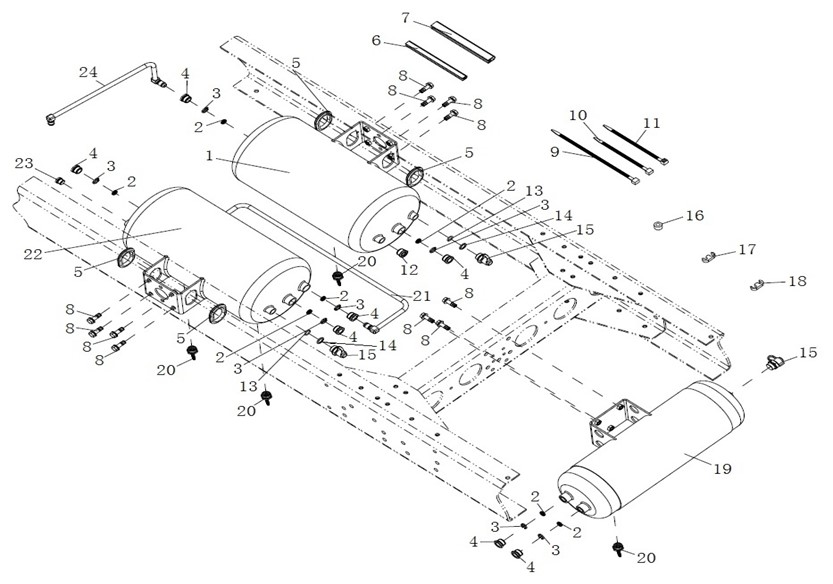

8365720 chassis brake syetem
Unit8365720Detail
|
Unit8365720Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
LG9700360845 |
brake |
001 |
8365720 |
||
|
55 |
2 |
LG9700362507 |
gasket |
008 |
8365720 |
||
|
57 |
3 |
LG9700362508 |
gasket |
008 |
8365720 |
||
|
59 |
4 |
LG9700362509 |
gasket |
008 |
8365720 |
||
|
51 |
5 |
LG9700360231 |
rubber lagging |
004 |
8365720 |
||
|
45 |
6 |
LG9700360217 |
SLEEVE |
007 |
8365720 |
||
|
48 |
7 |
LG9700360218 |
SLEEVE |
001 |
8365720 |
||
|
10 |
8 |
Q1461025 |
Bolt assembly |
011 |
8365720 |
||
|
36 |
9 |
LG9700361205 |
Bundle |
015 |
8365720 |
||
|
34 |
10 |
LG9700361206 |
Bundle |
031 |
8365720 |
||
|
38 |
11 |
LG9700361208 |
Bundle |
010 |
8365720 |
||
|
18 |
12 |
LG9700362555 |
connector |
001 |
8365720 |
||
|
25 |
13 |
LG9700360504 |
O-ring |
002 |
8365720 |
||
|
20 |
14 |
LG9700360503 |
Support washer M16 |
002 |
8365720 |
||
|
11 |
15 |
LG9700360063 |
Test connector |
003 |
8365720 |
||
|
40 |
16 |
LG9700361524 |
brake |
031 |
8365720 |
||
|
64 |
17 |
LG9700361527 |
brake |
002 |
8365720 |
||
|
61 |
18 |
LG9700361526 |
brake |
002 |
8365720 |
||
|
7 |
19 |
LG9700360810 |
brake |
001 |
8365720 |
||
|
13 |
20 |
LG9700360040 |
Drain valve |
004 |
8365720 |
||
|
32 |
21 |
LG9700360611 |
brake |
001 |
8365720 |
||
|
4 |
22 |
LG9700360804 |
brake |
001 |
8365720 |
||
|
16 |
23 |
LG9700362572 |
brake |
001 |
8365720 |
||
|
30 |
24 |
LG9700360610 |
brake |
001 |
8365720 |
||
