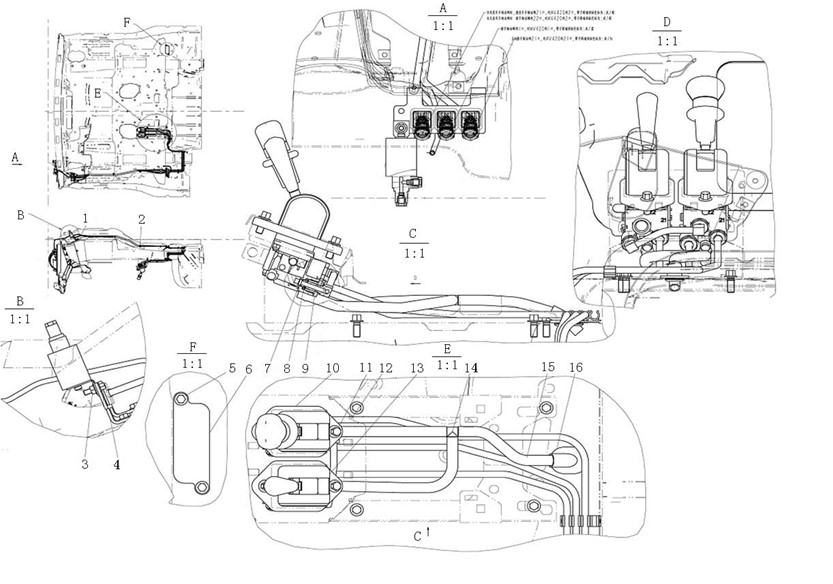

8330018 Braking System For N-Cab
Unit8330018Detail
|
Unit8330018Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
104 |
1 |
712W51715-0019 |
cushion |
001 |
8330018 |
||
|
72 |
2 |
711W97470-2001 |
CABLE BINDER 5.0*150(M6) |
002 |
8330018 |
||
|
103 |
3 |
ZQ32006 |
Hexagon nuts with flange |
002 |
8330018 |
||
|
99 |
4 |
712W51715-0018 |
Bracket |
001 |
8330018 |
||
|
71 |
5 |
ZQ32008 |
Hexagon nuts with flange |
004 |
8330018 |
||
|
66 |
6 |
811W98181-0228 |
Plate |
001 |
8330018 |
||
|
8 |
7 |
WG9000361004 |
Gasket |
005 |
8330018 |
||
|
10 |
8 |
WG9000361005 |
Clip |
005 |
8330018 |
||
|
12 |
9 |
WG9000361006 |
Nut |
005 |
8330018 |
||
|
2 |
10 |
811W52315-6156 |
Hand braking valve |
001 |
8330018 |
||
|
4 |
11 |
ZQ1840820 |
Hexagon bolts with flange |
002 |
8330018 |
||
|
75 |
12 |
711W61340-5071 |
Bracket assembly |
001 |
8330018 |
||
|
5 |
13 |
711W52315-6183 |
HAND BRAKE VALVE |
001 |
8330018 |
||
|
95 |
14 |
810W98131-0122 |
T-UNION F WASSERSCHLAUCH |
002 |
8330018 |
||
|
24 |
15 |
MQ4-37135-9060 |
HOSE |
660 |
8330018 |
||
|
14 |
16 |
810W96001-0514 |
Ring |
001 |
8330018 |
||
|
7 |
17 |
ZQ1840820 |
Hexagon bolts with flange |
002 |
8330018 |
||
|
19 |
18 |
810W96002-0451 |
Plug |
001 |
8330018 |
||
|
25 |
19 |
711W51290-5140 |
TUBE BUNDLE |
001 |
8330018 |
||
|
70 |
20 |
ZQ1840820 |
Hexagon bolts with flange |
004 |
8330018 |
||
|
89 |
21 |
711-61340-5063 |
Bracket assembly |
001 |
8330018 |
||
|
90 |
22 |
ZQ1840820 |
Hexagon bolts with flange |
004 |
8330018 |
||
|
91 |
23 |
ZQ32008 |
Hexagon nuts with flange |
004 |
8330018 |
||
