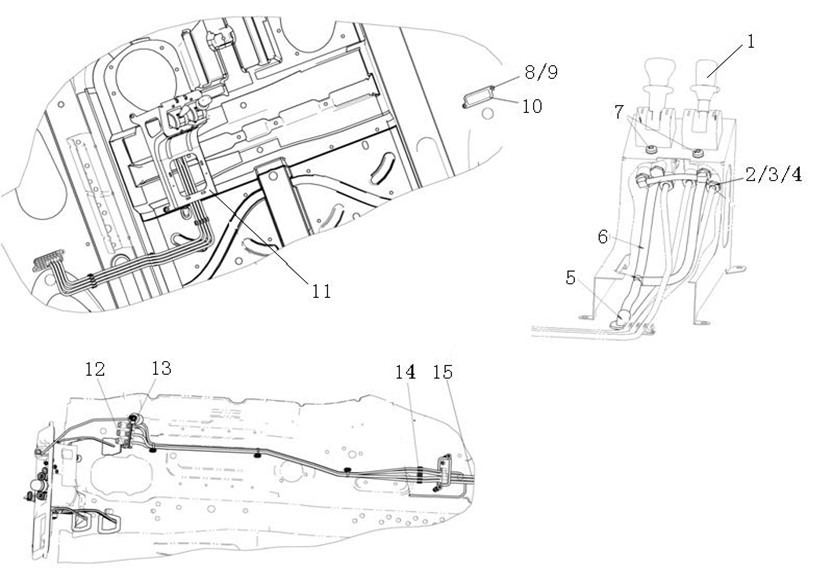

8330009 braking device
Unit8330009Detail
|
Unit8330009Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
2 |
1 |
811W52315-6156 |
Hand braking valve |
001 |
8330009 |
||
|
7 |
2 |
WG9000361005 |
Clip |
003 |
8330009 |
||
|
5 |
3 |
WG9000361004 |
Gasket |
003 |
8330009 |
||
|
9 |
4 |
WG9000361006 |
Nut |
003 |
8330009 |
||
|
11 |
5 |
810W96001-0514 |
Ring |
001 |
8330009 |
||
|
21 |
6 |
MQ4-37135-9060 |
HOSE |
445 |
8330009 |
||
|
4 |
7 |
ZQ1840820 |
Hexagon bolts with flange |
002 |
8330009 |
||
|
64 |
8 |
ZQ32008 |
Hexagon nuts with flange |
004 |
8330009 |
||
|
63 |
9 |
ZQ1840820 |
Hexagon bolts with flange |
004 |
8330009 |
||
|
59 |
10 |
811W98181-0228 |
Plate |
001 |
8330009 |
||
|
67 |
11 |
811W61340-5055 |
Bracket assembly |
001 |
8330009 |
||
|
98 |
12 |
712W51715-0019 |
cushion |
001 |
8330009 |
||
|
93 |
13 |
712W51715-0018 |
Bracket |
001 |
8330009 |
||
|
65 |
14 |
711W97470-2001 |
CABLE BINDER 5.0*150(M6) |
002 |
8330009 |
||
|
22 |
15 |
811W51290-5128 |
TUBE BUNDLE |
001 |
8330009 |
||
|
16 |
16 |
810W96002-0451 |
Plug |
001 |
8330009 |
||
|
89 |
17 |
ZQ1840820 |
Hexagon bolts with flange |
004 |
8330009 |
||
|
90 |
18 |
ZQ32008 |
Hexagon nuts with flange |
004 |
8330009 |
||
|
91 |
19 |
811W97401-0589 |
CABLE BINDER 4,8X360 |
003 |
8330009 |
||
|
97 |
20 |
ZQ32006 |
Hexagon nuts with flange |
002 |
8330009 |
||
|
105 |
21 |
712-61701-0289 |
cover |
001 |
8330009 |
||
