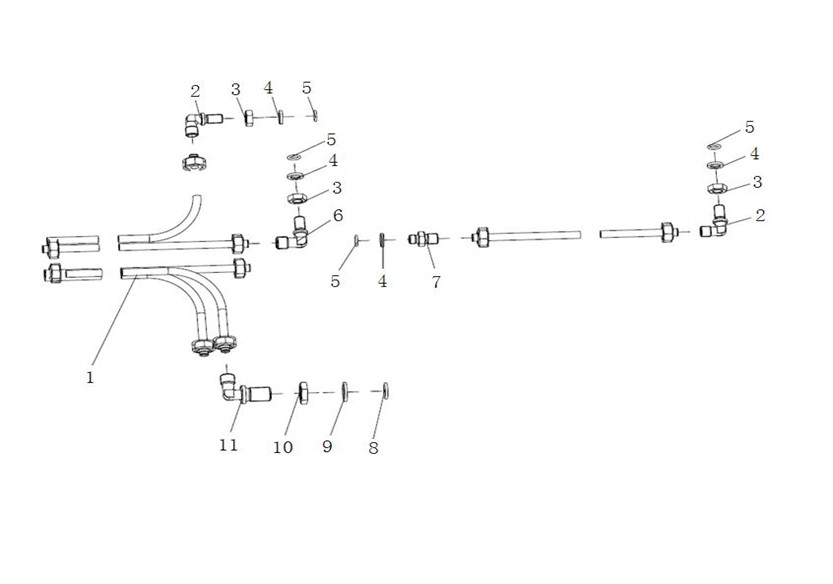

8271227 Auxiliary air pipe bundle
Unit8271227Detail
Unit8271227Detail |
|||||||
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
1 |
1 |
LG9705276823 |
Auxiliary air pipe bundle |
001 |
8271227 |
||
8 |
2 |
LG9700360542 |
Joint M10/M12 |
002 |
8271227 |
||
33 |
3 |
LG9700360511 |
Hexagonal thin nut M10X1 |
003 |
8271227 |
||
23 |
4 |
LG9700360501 |
Support washer M10 |
004 |
8271227 |
||
28 |
5 |
LG9700360502 |
O-ring |
004 |
8271227 |
||
13 |
6 |
LG9700360571 |
Joint M10/M14 |
001 |
8271227 |
||
3 |
7 |
LG9700360541 |
Joint M10/M12 |
001 |
8271227 |
||
43 |
8 |
LG9700360504 |
O-ring |
001 |
8271227 |
||
38 |
9 |
LG9700360503 |
Support washer M16 |
001 |
8271227 |
||
48 |
10 |
LG9700360512 |
Hexagonal thin nut M16x1.5 |
001 |
8271227 |
||
18 |
11 |
LG9700360549 |
Joint M16/M14 |
001 |
8271227 |
