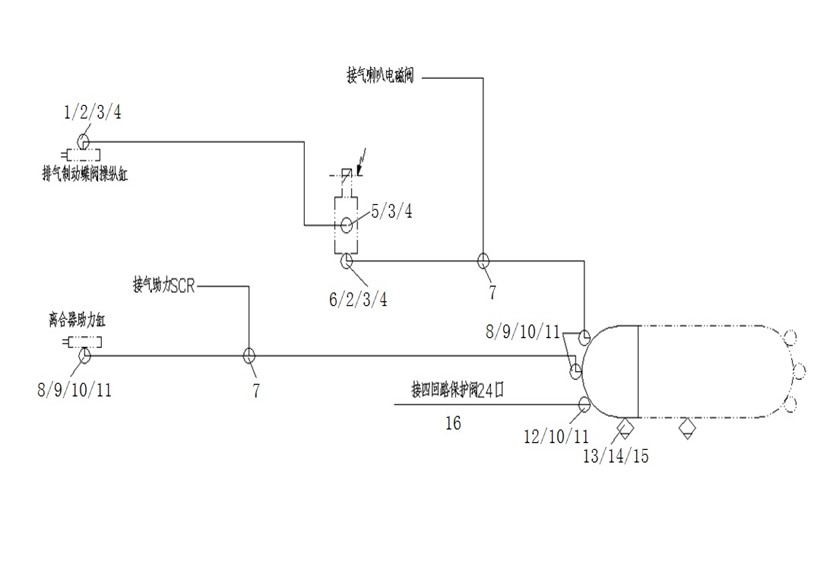

8270601 brake
Unit8270601Detail
|
Unit8270601Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
22 |
1 |
LG9700360542 |
Joint M10/M12 |
002 |
8270601 |
||
|
67 |
2 |
LG9700360511 |
Hexagonal thin nut M10X1 |
002 |
8270601 |
||
|
72 |
3 |
LG9700360501 |
Support washer M10 |
006 |
8270601 |
||
|
77 |
4 |
LG9700360502 |
O-ring |
006 |
8270601 |
||
|
27 |
5 |
LG9700360541 |
Joint M10/M12 |
002 |
8270601 |
||
|
32 |
6 |
LG9700360571 |
Joint M10/M14 |
002 |
8270601 |
||
|
37 |
7 |
LG9700360564 |
Joint 3XM14 |
001 |
8270601 |
||
|
14 |
8 |
LG9700360549 |
Joint M16/M14 |
003 |
8270601 |
||
|
42 |
9 |
LG9700360512 |
Hexagonal thin nut M16x1.5 |
004 |
8270601 |
||
|
47 |
10 |
LG9700360503 |
Support washer M16 |
005 |
8270601 |
||
|
52 |
11 |
LG9700360504 |
O-ring |
005 |
8270601 |
||
|
9 |
12 |
LG9700360545 |
Nozzle |
001 |
8270601 |
||
|
19 |
13 |
LG9700360009 |
Drain valve |
001 |
8270601 |
||
|
57 |
14 |
LG9700360505 |
Support washer M22 |
001 |
8270601 |
||
|
62 |
15 |
LG9700360506 |
O-ring |
001 |
8270601 |
||
|
82 |
16 |
LG9700362172 |
brake |
001 |
8270601 |
||
|
1 |
17 |
LG9705271362 |
Air pipe assembly |
001 |
8270601 |
||
|
3 |
18 |
LZ9704271362 |
Air pipe assembly |
001 |
8270601 |
||
|
4 |
19 |
LG9700360546 |
Joint M16/M18 |
001 |
8270601 |
||
|
94 |
20 |
LG9700270100 |
horn |
001 |
8270601 |
||
