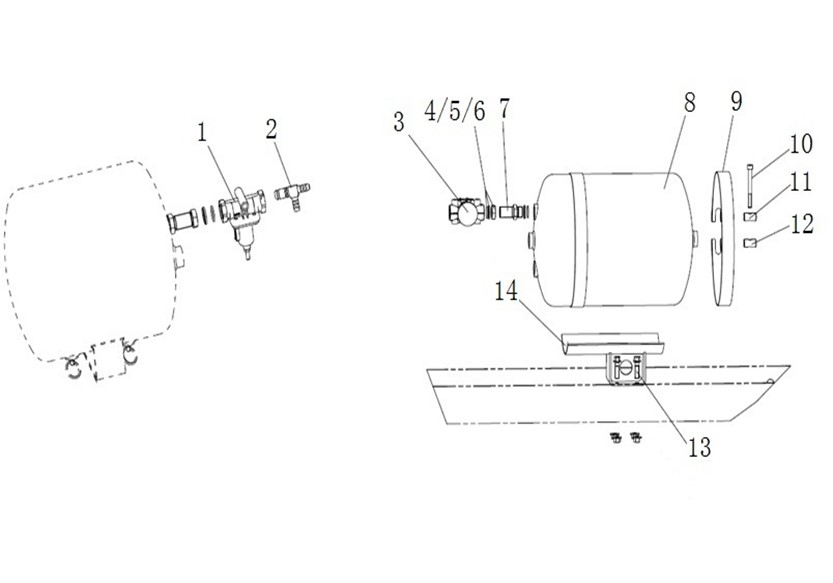

8270403 Air Reservoir 20L St.
Unit8270403Detail
|
Unit8270403Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
27 |
1 |
WG9000360519 |
Valve |
001 |
8270403 |
||
|
49 |
2 |
WG9000361305 |
Nozzle |
001 |
8270403 |
||
|
25 |
3 |
WG9000360549 |
pressure limiting valve |
001 |
8270403 |
||
|
31 |
4 |
WG9000361015 |
Nut |
002 |
8270403 |
||
|
33 |
5 |
WG9000361016 |
Gasket |
004 |
8270403 |
||
|
35 |
6 |
WG9000361017 |
O-ring |
004 |
8270403 |
||
|
30 |
7 |
190003559385 |
Nozzle |
002 |
8270403 |
||
|
2 |
8 |
WG9000360716 |
Air tank |
001 |
8270403 |
||
|
11 |
9 |
WG9719360024 |
Strap assembly |
002 |
8270403 |
||
|
24 |
10 |
Q218B0880 |
Screw |
002 |
8270403 |
||
|
14 |
11 |
WG09 190017 |
Pin |
002 |
8270403 |
||
|
19 |
12 |
WG700 550013 |
Pin |
002 |
8270403 |
||
|
10 |
13 |
ZQ1841035 |
Hexagon bolts with flange |
004 |
8270403 |
||
|
6 |
14 |
WG9719360015 |
Bracket assembly |
001 |
8270403 |
||
|
37 |
15 |
WG9000361402 |
Drain valve |
001 |
8270403 |
||
|
39 |
16 |
WG9000361007 |
Gasket |
005 |
8270403 |
||
|
41 |
17 |
WG9000361008 |
Clip |
005 |
8270403 |
||
|
43 |
18 |
WG9000361009 |
Nut |
005 |
8270403 |
||
|
45 |
19 |
WG9000361012 |
Plug |
001 |
8270403 |
||
|
47 |
20 |
WG9000361306 |
Nozzle |
001 |
8270403 |
||
|
51 |
21 |
WG9000361204 |
Nozzle |
003 |
8270403 |
||
|
53 |
22 |
WG9000361101 |
Nozzle |
001 |
8270403 |
||
|
55 |
23 |
190003179785 |
Plastic tube |
004 |
8270403 |
||
