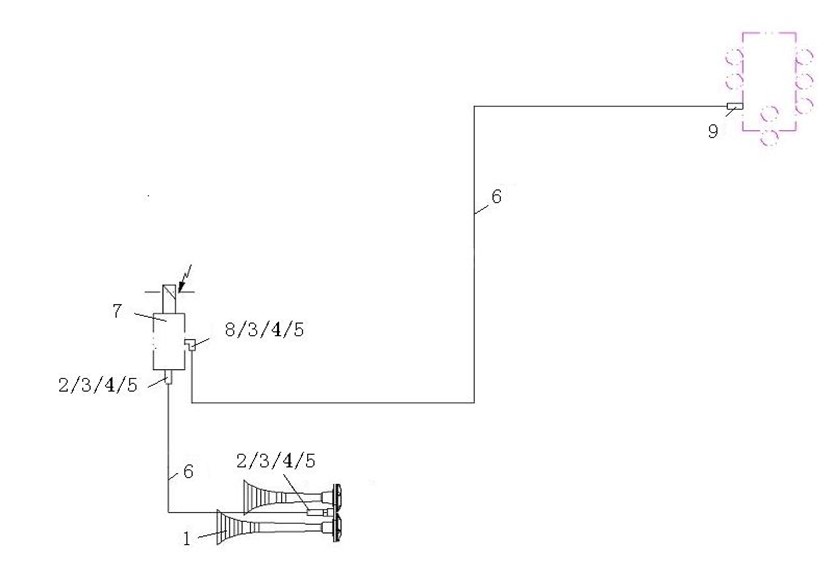

8270225 Dual air horn air controlling device (VOSS)
Unit8270225Detail
|
Unit8270225Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
WG9000270002 |
Automotive—Air horn |
001 |
8270225 |
||
|
12 |
2 |
WG9000361107 |
Nozzle |
002 |
8270225 |
||
|
16 |
3 |
WG9000361001 |
Gasket |
003 |
8270225 |
||
|
18 |
4 |
WG9000361002 |
Clip |
003 |
8270225 |
||
|
20 |
5 |
WG9000361003 |
Nut |
003 |
8270225 |
||
|
22 |
6 |
190003179782 |
Plastic tube |
008 |
8270225 |
||
|
23 |
7 |
WG9718710003 |
Solenoid valve |
001 |
8270225 |
||
|
14 |
8 |
WG9000361207 |
Nozzle |
001 |
8270225 |
||
|
10 |
9 |
WG9000361109 |
Nozzle |
001 |
8270225 |
||
|
3 |
10 |
WG9725270017 |
horn stents |
001 |
8270225 |
||
|
5 |
11 |
Q150B0625 |
Bolt |
002 |
8270225 |
||
|
6 |
12 |
Q150B0665 |
Bolt |
002 |
8270225 |
||
|
7 |
13 |
Q40106 |
Washer |
004 |
8270225 |
||
|
8 |
14 |
Q40306 |
Spring washer |
004 |
8270225 |
||
|
9 |
15 |
Q340B06 |
Nut |
004 |
8270225 |
||
|
25 |
16 |
Q150B0816 |
Bolt |
001 |
8270225 |
||
|
26 |
17 |
Q41208 |
Washer |
001 |
8270225 |
||
|
27 |
18 |
Q150B0616 |
Bolt |
001 |
8270225 |
||
|
28 |
19 |
Q40106 |
Washer |
001 |
8270225 |
||
