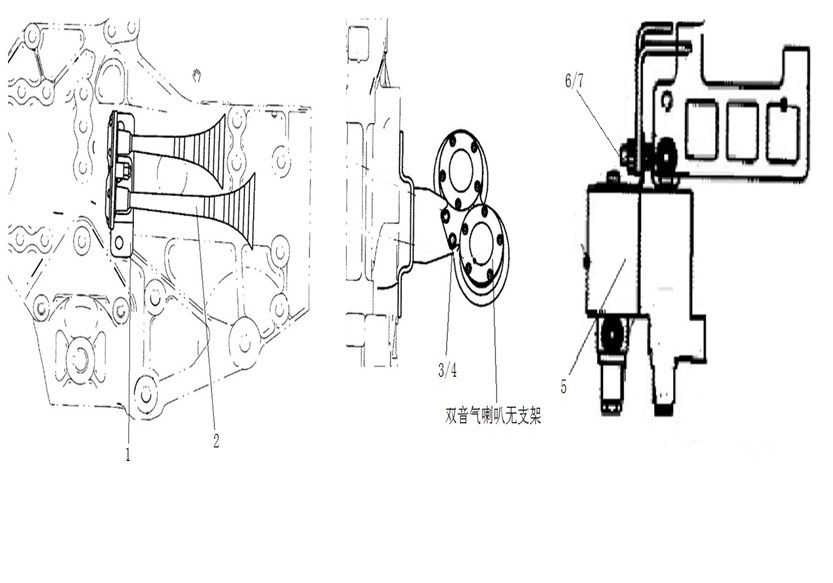

8240003 The Pneuphonic horn Assembly On The Chassis
Unit8240003Detail
|
Unit8240003Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
5 |
1 |
WG9725270019 |
Bracket |
001 |
8240003 |
||
|
2 |
2 |
WG9000270002 |
Automotive—Air horn |
001 |
8240003 |
||
|
8 |
3 |
ZQ1840620 |
Hexagon bolts with flange |
002 |
8240003 |
||
|
9 |
4 |
ZQ32006 |
Hexagon nuts with flange |
002 |
8240003 |
||
|
21 |
5 |
WG9718710003 |
Solenoid valve |
001 |
8240003 |
||
|
24 |
6 |
ZQ1840616 |
Hexagon bolts with flange |
001 |
8240003 |
||
|
25 |
7 |
ZQ32006 |
Hexagon nuts with flange |
001 |
8240003 |
||
|
10 |
8 |
WG9000361001 |
Gasket |
003 |
8240003 |
||
|
12 |
9 |
WG9000361002 |
Clip |
003 |
8240003 |
||
|
14 |
10 |
WG9000361003 |
Nut |
003 |
8240003 |
||
|
16 |
11 |
WG9000361207 |
Nozzle |
001 |
8240003 |
||
|
18 |
12 |
WG9000361107 |
Nozzle |
003 |
8240003 |
||
|
20 |
13 |
190003179782 |
Plastic tube |
005 |
8240003 |
||
