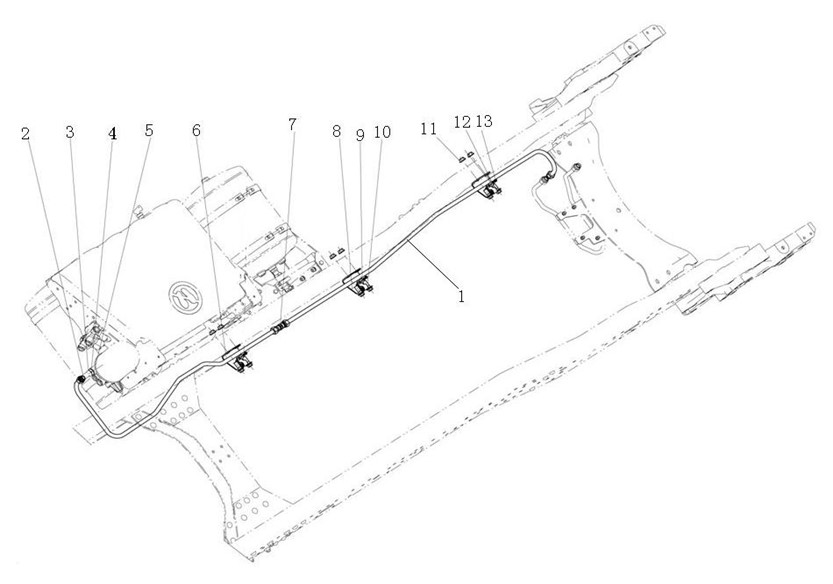

8030001 Air supply for brake system (The distance bettwen the hole of battery and front axle is 1700)
Unit8030001Detail
|
Unit8030001Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
2 |
1 |
712W51226-5058 |
BRAKE LINE |
001 |
8030001 |
||
|
74 |
2 |
AZ9003550040 |
Nozzle |
001 |
8030001 |
||
|
75 |
3 |
WG9000361015 |
Nut |
001 |
8030001 |
||
|
77 |
4 |
WG9000361016 |
Gasket |
001 |
8030001 |
||
|
79 |
5 |
WG9000361017 |
O-ring |
001 |
8030001 |
||
|
39 |
6 |
712W51226-5057 |
BRAKE LINE |
001 |
8030001 |
||
|
38 |
7 |
Q80316 |
Joint |
001 |
8030001 |
||
|
12 |
8 |
810W51240-5001 |
Bracket assembly |
003 |
8030001 |
||
|
34 |
9 |
WG9000365401 |
Single tube clip |
003 |
8030001 |
||
|
32 |
10 |
ZQ1811435TF6 |
Hexagon flange bolts with teeth |
004 |
8030001 |
||
|
37 |
11 |
ZQ32006 |
Hexagon nuts with flange |
003 |
8030001 |
||
|
31 |
12 |
ZQ1811430TF6 |
Hexagon flange bolts with teeth |
002 |
8030001 |
||
|
73 |
13 |
ZQ32006 |
Hexagon nuts with flange |
001 |
8030001 |
||
|
33 |
14 |
ZQ32514T13F6 |
Hexagon flange nuts with teeth |
006 |
8030001 |
||
|
49 |
15 |
810W51240-5001 |
Bracket assembly |
001 |
8030001 |
||
|
68 |
16 |
ZQ1811435TF6 |
Hexagon flange bolts with teeth |
002 |
8030001 |
||
|
69 |
17 |
ZQ32514T13F6 |
Hexagon flange nuts with teeth |
002 |
8030001 |
||
|
70 |
18 |
WG9000365401 |
Single tube clip |
001 |
8030001 |
||
