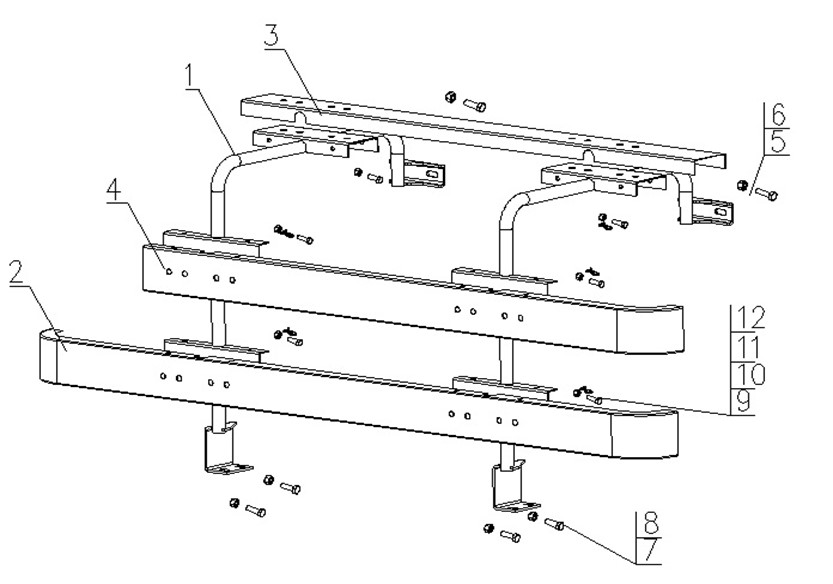

1931430 guard of Liquefied Natural Gas supply device
Unit1931430Detail
|
Unit1931430Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
2 |
1 |
WG9525934021 |
Bracket assembly |
002 |
1931430 |
||
|
7 |
2 |
WG9525934024 |
plate |
001 |
1931430 |
||
|
9 |
3 |
WG9525934025 |
plate |
001 |
1931430 |
||
|
11 |
4 |
WG9525934026 |
plate |
001 |
1931430 |
||
|
13 |
5 |
ZQ1811440TF6 |
Hexagon flange bolts with teeth |
002 |
1931430 |
||
|
14 |
6 |
ZQ32514T13F6 |
Hexagon flange nuts with teeth |
002 |
1931430 |
||
|
15 |
7 |
ZQ1811235TF6 |
Hexagon flange bolts with teeth |
004 |
1931430 |
||
|
16 |
8 |
ZQ32512T13F6 |
Hexagon flange nuts with teeth |
004 |
1931430 |
||
|
17 |
9 |
ZQ1841025TF6 |
Hexagon bolts with flange |
012 |
1931430 |
||
|
18 |
10 |
Q340B10 |
Nut |
012 |
1931430 |
||
|
19 |
11 |
Q40110 |
Washer |
012 |
1931430 |
||
|
20 |
12 |
Q40310 |
Spring washer |
012 |
1931430 |
||
