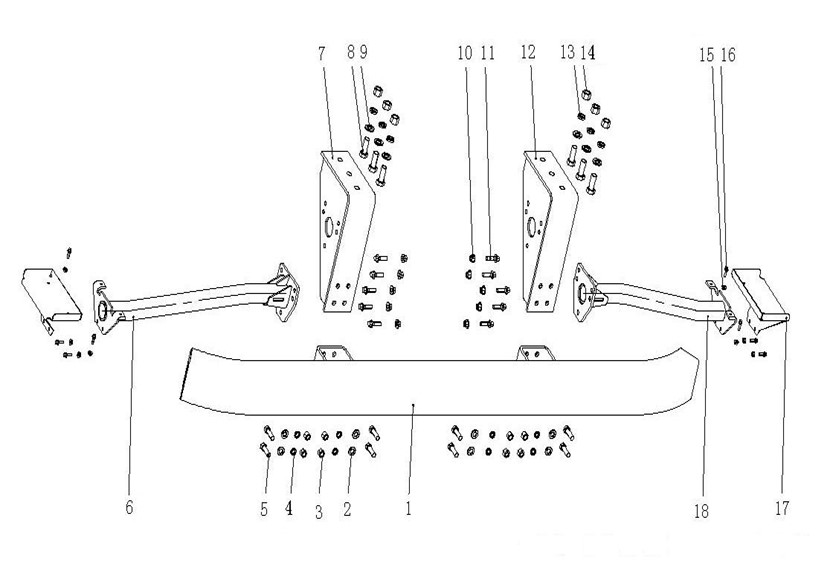

1931241 Front underrun protection
Unit1931241Detail
Unit1931241Detail |
|||||||
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
1 |
1 |
LG9716930340 |
Cross member assembly |
001 |
1931241 |
||
26 |
2 |
Q40112 |
Washer |
008 |
1931241 |
||
28 |
3 |
Q33212 |
Nut |
008 |
1931241 |
||
27 |
4 |
Q40312 |
Spring washer |
008 |
1931241 |
||
25 |
5 |
Q150B1238 |
Bolt |
008 |
1931241 |
||
47 |
6 |
LG9716932009 |
The footplate bracket assembly (Right) |
001 |
1931241 |
||
17 |
7 |
LG9716930355 |
Bracket assembly |
001 |
1931241 |
||
29 |
8 |
Q150B1640 |
Bolt |
006 |
1931241 |
||
30 |
9 |
Q40116 |
Washer |
006 |
1931241 |
||
66 |
10 |
ZQ32010 |
Hexagon nuts with flange |
010 |
1931241 |
||
65 |
11 |
ZQ1841035 |
Hexagon bolts with flange |
010 |
1931241 |
||
9 |
12 |
LG9716930350 |
Bracket assembly |
001 |
1931241 |
||
31 |
13 |
Q40316 |
Spring washer |
006 |
1931241 |
||
32 |
14 |
Q33216 |
Nut |
006 |
1931241 |
||
68 |
15 |
ZQ32006 |
Hexagon nuts with flange |
008 |
1931241 |
||
67 |
16 |
ZQ1840620 |
Hexagon bolts with flange |
008 |
1931241 |
||
61 |
17 |
LG9716932011 |
Pedal |
002 |
1931241 |
||
33 |
18 |
LG9716932003 |
The footplate bracket assembly (Left) |
001 |
1931241 |
